US Plug White/ Black Folding Charger Adapter 5V 2A AC to DC Switching PSU Wall Charger Used for Portable Tools Music Player

Product Description US Plug White/ Black Folding Charger Adapter 5V 2A AC to DC Switching PSU Wall Charger Used for Portable Tools Music Player

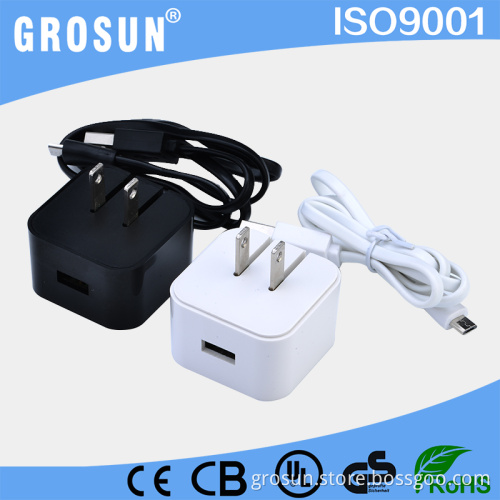

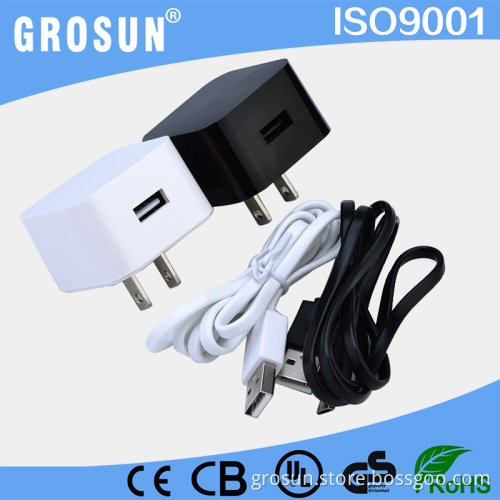

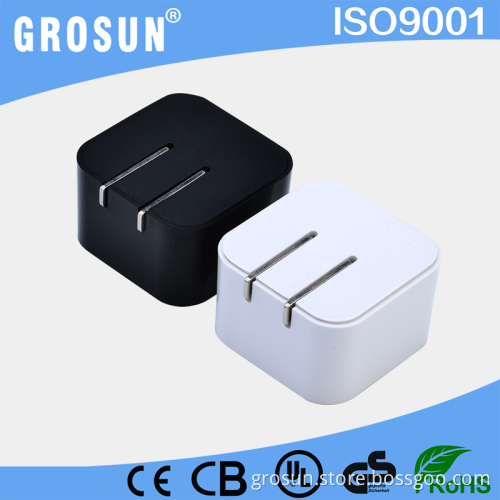

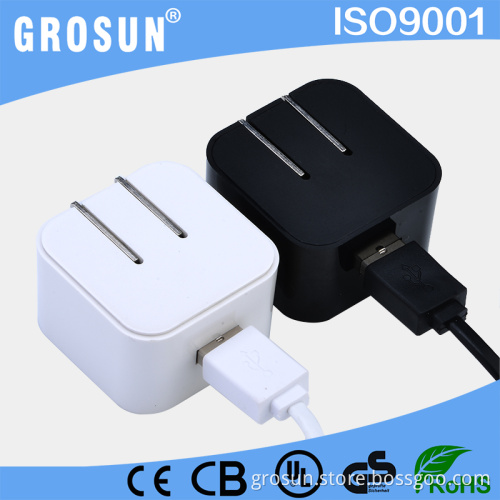

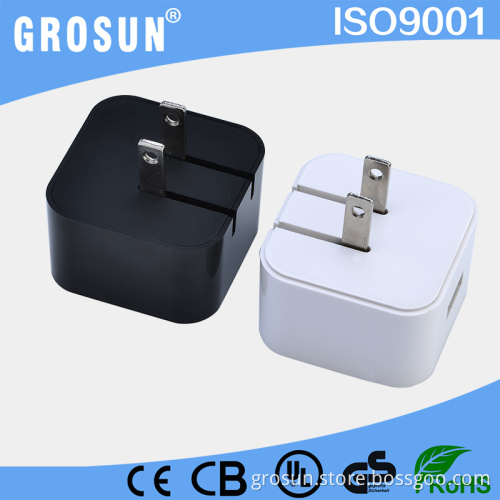

Detailed Images

Electrical Specifications
Input Voltage	110-240Vac
Voltage Range	90-264Vac
Input Frequency	47-63Hz
Input Current	0.4A max.@100Vac, 0.25A max.@220Vac
Inrush Current	30A max.@22Vac
Hold Time	10ms
Linear Adjustment Rate	±2%
Load Regulation Rate	±5%
Ripple & Noise	<1% Voltage max.
Protection Feature	OVP.OCP.SCP

Environment Parameters
Operating Temperature	0~+40℃
Storage Temperature	-20~+80℃
Insulation Strength	Primary to Secondary: 300Vac/5mA/3S for Type Test
Insulation Resistance	Primary to Secondary: 10Mohm min @ 500Vdc
Safety Certifications	CE GS(LVD)/EMC
MTBF	50000 Hours Ta=25ºC
Dimension (LxWxH) (mm)	35.5*29.9*28.8

Typeocal Model List
Model	Voltage (V)	Current (A)	Efficiency (% min)	Ripple (P-PmV)	Power (W max)
GS-P050010E643	5.0	1.0	75	50	5

Notes:

This charger is not suitable for appliances which require an input is more than 2A, Please kindly check the input required for your appliance/device before the purchase.

Using an incorrect charger may damage your appliance/device and the charger itself.

Damage to the charger caused by misuse will not be covered under warranty.
Factory Photos Shenzhen Grosun Technology Co., ltd.
a professional manufacturer for all kinds of power supplies. Our products mainly include power adapter, LED power inverter, car power supply and aluminum shell power supply, which are widely used in set-top-boxes, CCTV cameras, LED lights, notebook computers, LED televisions, handheld game devices, etc.
Certifications GS CE FCC Our products have all passed International certifications, such as CE, ROHS, FCC, GS, CB and UL. Plus they all meet the energy efficiency level CEC ERP V.
Why Grosun 1. For you.
We can help you save cost, beat competitor then earn more profits.

2. Quality assured.
All of our products have passed strict detection, We have many advanced machineries, like Panasonic SMT machines, Panasonic AVK auto component inserters, reflow welding machines, etc. All our products have passed Four Times' Total Testing procedures before shipment.

3. No worries.
We have long-term cooperation with some industry giants like Foxconn, Videocon and UEC. Most of our products have 2 years warranty.

4. OEM is available.
Our professional R&D staff can help you design special model in order to meet your needs. Also we can print your logo on the products if needed.
FAQ 1. Are you a trading company or a factory?
We are a factory. located in Bao’an District, Shenzhen city. which is only about 20 minutes‘ drive from the airport. You are always welcome to visit our factory at any time.

2. Free sample?
Yes, Sampling cost can be returned once bulk order is confirmed.
In some case, we can arrange for free sample if freight is collect.

3. What payment methods do you accept?
We accept TT, L/C at sight, PayPal.

4. What is your defective rate?
Quality is our first goal! Normally our defective rate is below 100ppm.

5. What is your minimum order quantity (MOQ)?
Our MOQ for each model is 1000 PCS.
Samples can be sent for your test before order.

Contact Person Good day, This is Alice, What can I do for you please.
