6V 2.5A China Factory AC to DC Adapter for CCTV, Set Top Box

6V 2.5A China Factory AC to DC Adapter for CCTV, Set Top Box   GROSUN TECHNOLOGY AIMS TO BE YOUR POWERFUL POWER SUPPLIER!~     >>>Product Features for  AC to DC Adapter        • AC to DC Converter                                                                                                                                       • Streamline Full Sealed                                                                                                                                          • Short Circuit Protection. OVP. OCP                                                                                                           • Meet RoHS Standard  • CEC. ERP Level V, VI      >>>Application   • Set Top Box • Network Equipment • Portable Tools • Security Equipment (CCTV)      >>>Product Details for   AC to DC Adapter

Electrical Specifications
Input Voltage	110-240Vac
Voltage Range	90-264Vac
Input Frequency	47-63Hz
Input Current	0.5A max.@100Vac,0.3A max.@220Vac
Inrush Current	50A max.@220Vac
Hold Time	10ms
Linear Adjustment Rate	±2%
Load Regulation Rate	±5%
Ripple & Noise	<1% Voltage max
Protection Function	OVP. OCP. Short Circuit  Protection



Environment Parameters
Operating Temperature		0~+40℃
Storage Temperature		-20~+80℃
Insulation Strength		Primary to Secondary: 3000Vac/5mA/3S for Type Test
Insulation Resistance		Primary to Secondary: 10M ohm min. at 500Vdc
MTBF		50000Hours Ta=25℃
Safety Certification		UL/CUL CE GS(LVD)/EMC
Dimension(L*W*H) (mm)		87.2*37.3*26.5
Typical Model List
Model No.	Voltage(V)		Current(A)	Efficiency	Ripple (P-PmV)	Power(W max)
GS-P050030E429	5.0		3.0	72%	50	15
GS-P060025E429	6.0		2.5	78%	60	15
GS-P090015E429	9.0		1.5	78%	90	14.5
GS-P120012E429	12.0		1.2	78%	120	14.4

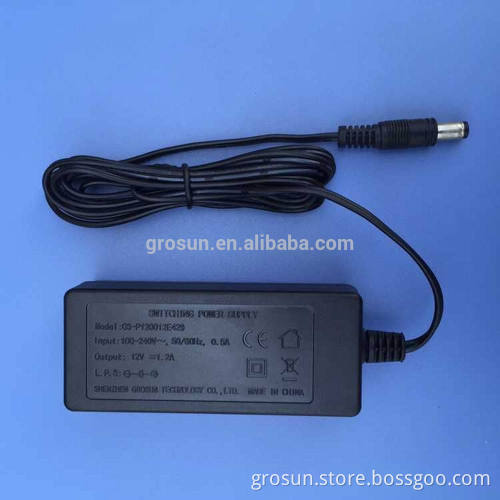

    >>>Product Photos for CCTV Adapter       >>> Factory Tour & Certificates             >>>Why Choose Grosun?   1.   Powerful Hardware Strength    We have brought in over 10 advanced auto production facilities and precise testing machines to ensure efficiency and quality, such as Panasonic SMT machines, Panasonic   AVK auto component inserters, reflow welding machines, etc.     2.   Professional Factory Experience in Industry   Many clients around the globe are sourcing our PSU products. We have established long-term business partnership with many worldwide BIG NAMES since 2006 including UEC , Skardin  and  Videocon.     3.   100% Quality Control and Warranty Guarantee   All our products have passed Four Times’ Total Testing procedures before shipment. Customers are very satisfied with the quality and performance.     4.   Big Capacity and Fast Lead Time   We have dozens of intelligent auto-production lines. Weekly output achieves as high as 200 thousand pieces, thus we are able to finish your order as soon as possible.     5.   Efficient Sales Team to Solve Your Problems   Our sales are all very proficient in English. We are always available to help you with any questions about our company and products.     6.   Multi-level  Quality &Safety Certifications    Our products have all passed International certifications, such as CE, ROHS, FCC, GS, CB and UL. Plus they all meet the energy level CEC ERP V.    7.    OEM  Available for You   Our professional R&D staff can help you design special model in order to meet your needs. Also we can print your logo on the products if needed.      >>>F.A.Q (Frequently Asked Questions)    1. How can I place an order?   Choose product model ----> Confirm order details (power, voltage, current, certification, quantity and packing) ----> Enquiry for quotation ----> Arrange payment ---->Plan for order production ----> Shipping     2. Is it possible to get free sample?   Sampling cost can be returned once bulk order is confirmed.   In some case, we can arrange for free sample if freight is collect.      3. What payment methods do you accept?   We accept TT, L/C at sight, Money gram, PayPal, West Union.     4. What is your defective rate?   Quality is our first goal! We adopt many advanced equipment and train workers to ensure product quality. Normally our defective rate is below 100ppm.     5. Where is your factory located? Is it convenient to visit?   Our office and factory is located in Bao’an District, Shenzhen city, which is only about 20 minutes‘drive from the airport.  You are always welcome to visit our factory at any time.     6. What is your minimum order quantity (MOQ)?   Our M.O.Q for each model is 1000 PCS.     Samples can be sent for your test before order.     >>>Contact Information
