FCC UL Approved US Plug DC 12v 1a Wall Switching Power Adaptor for CCTV Camera

FCC UL Approved US Plug DC 12v 1a Wall Switching Power Adaptor for CCTV Camera Product Description  Delivery Assured, Quality Assured and Price is Competitive AC to DC converter Streamline Full Seadled Light Weight & Compact Short Circuit Protection. OVP. OCP Meet RoHS Standard Meet CE.ERP Level V Applications: Set-Top Box Network Equipment Portable Tools Security Equipment

Electrical Specifications of 12 volt switching power adaptor
Input Voltage	110-240Vac
Voltage Range	90-264Vac
Input Frequency	47-63HZ
Input Current	0.6A max.@100Vac, 0.4A max.@220Vac
Inrush Current	50A max.@220Vac
Hold Time	10ms
Linear Adjustment Rate	±2%
Load Reguation Rate	±5%
Ripple & Noise	<1% Voltage max
Protection Function	OVP, OCP, SCP



Environment Parameters
Operating Temperature	0~+40℃
Storage Temperature	-20~+80℃
Insulation Strength	Primary to secondary: 3000 Vac/5mA/3S for type test
Insulation Resistance	Primary to secondary: 10Mohm min at 500 Vdc
MTBF	50000 hours Ta=25 ℃
Safty  Certifications	UL/CUL CE GS(LVD)/EMC

    Notes:   This Adapter is not suitable for appliances which require an input is more than 1.0 Amp , Please kindly check the input required for your appliance/device before the purchase. Using an incorrect adapter may damage your appliance/device and the adaptper itself. Damage to the adapter caused by misuse will not be covered under warranty. Model List

Model	Voltage(V)	Current(A)	Efficiency(% min)	Ripple(P-PmV)	Power (W max)
GS-P050020E654	5	2	75	50	10
GS-P060015E654	6	1.5	75	60	9
GS-P090012E654	9	1.2	78	90	10.8
GS-P120010E654	12	1	78	120	12

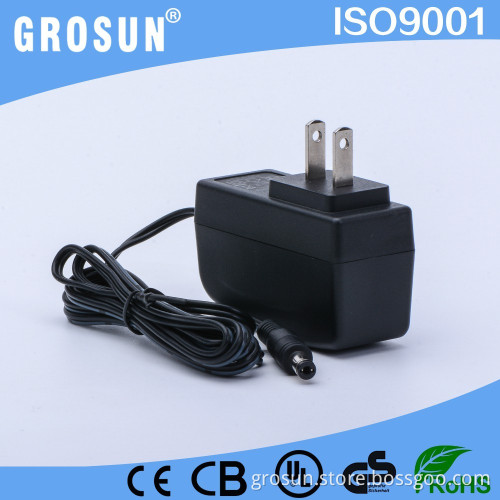

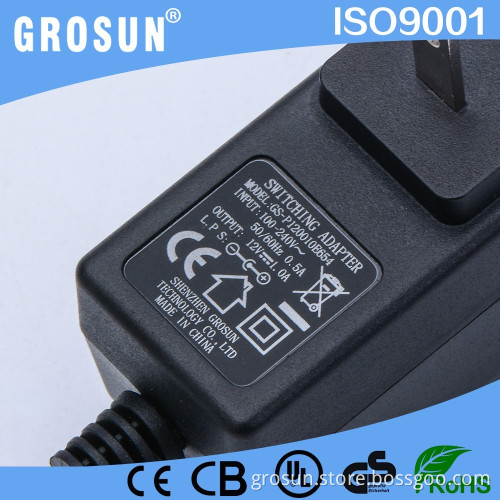

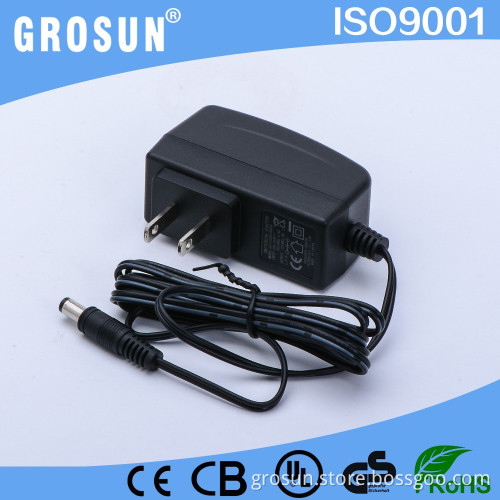

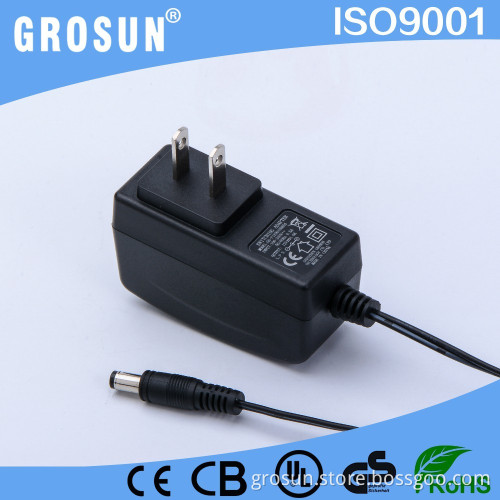

Product Pictures      Company Information   Company Profile, Established in 2006, is a professional manufacturer for all kinds of power supplies. our company is located in Shenzhen special economic zone. So far we have over 100 product-line staff and 20 technical staff.  our products have passed through CE, RoHS, CCC certifications. Our power products have been exported to South Africa, Taiwan, South American countries as well as domestic markets. Grosun makes what customer desires!   Our Services, Do offer you all-demensional "one-station" purchasing service. Esteem and loyalty help us to go further.   Our Main Products, • Wall mounted type adapter
• Desk-top type adapter
• Charger
• Aluminum shell power
• LED driver power
• Inverter   Which are widely used in set-top-boxes, CCTV cameras, LED lights, notebook computers, LED televisions, handheld game devices, etc.              Packaging & Shipping  Export standard hard cardboard with anti-moisture polybag
The customized packaging is acceptable.
3-5 Working days for sample order, 15-25 days for bulk order.      FAQ   1. No worries?
YES, We can help you save cost, beat competitor then earn more profits. We have long-term cooperation with some industry giants like Foxconn, Videocon and UEC. Most of our products have 2 years warranty.
  2. Free sample?
YES, Sampling cost can be returned once bulk order is confirmed.
In some case, we can arrange for free sample if freight is collected.
3. OEM / ODM ?
YES, Our professional R&D staff can help you design special model in order to meet your needs. Also we can print your logo on the products if needed.   4. A factory?
YES, We are a factory. located in Bao’an District, Shenzhen city. which is only about 20 minutes‘ drive from the airport. You are always welcome to visit our factory at any time.   5. Defective rate?
Quality is our first goal! All of our products have passed strict detection, All our products have passed Four Times' Total Testing procedures before shipment. Normally our defective rate is below 100ppm.
  6. MOQ?
Our MOQ for each model is 500 PCS.
Samples can be sent for your test before order. Contact Information
