120W Universal Aluminum Single Output 24V Switching Power Supply 5A for LED Lamp

Product Description 120W Universal Aluminum Single Output 24V Switching Power Supply 5A for LED Lamp

1. AC TO DC Converter
2. NO PFC Function
3. Low Consumption When No Load Power
4. OVP, OCP, SCP
5. Single Output
6. Manual Switch Input Voltage 110/220 Vac
7. Comply with RoHS safety standards.
Application:
1. Machinery and Equipment
2. Industrial Control Equipment
3. Advertising Machine

Electrical Specifications of Aluminum PSU
Input Voltage	110/220V ac
Voltage Range	90-130Vac / 200-260Vac
Input Frequency	47-63Hz
Input Current	2.5A max.@100V ac, 1.3A max.@220Vac
Inrush Current	80A max.@220V ac
Hold Time	10ms
Linear Adjustment Rate	±2%
Load Reguation Rate	±5%
Ripple & Noise	<1% Voltage max
Protection Function	OVP, OCP, SCP
Quality Assurance	4 Times 100% Tested - Every pieces of charger would be tested 4 times

Environment Parameters
Operating Temperature	0~+40°c
Storage Temperature	-20~+80°c
Insulation Strehgth	Primary to Secondary: 3000Vac/5mA/3S for Type Test
Insulation Resistance	Primary to Secondary: 10Mohm min @ 500 V dc
MTBF	5000 Hours Ta=25℃
Cooling Method	Natural Convection
Safty Certification	UL/CUL FCC GS(LVD)/EMC 3C
Dimension(L*W*H)(mm)	198*98.5*37.8

Model List

Model	Voltage (V)	Current (A)	Efficiency (% min)	Ripple  (P-PmV)	Power (W max)
GS-P120100E159	12	10	78	120	120
GS-P240050E159	24	5	80	240	120

Notes:

This power supply is not suitable for appliances which require an input is more than 5A , Please kindly check the input required for your appliance/device before the purchase.

Using an incorrect power supply may damage your appliance/device and the power supplyr itself.
Damage to the power supply caused by misuse will not be covered under warranty.

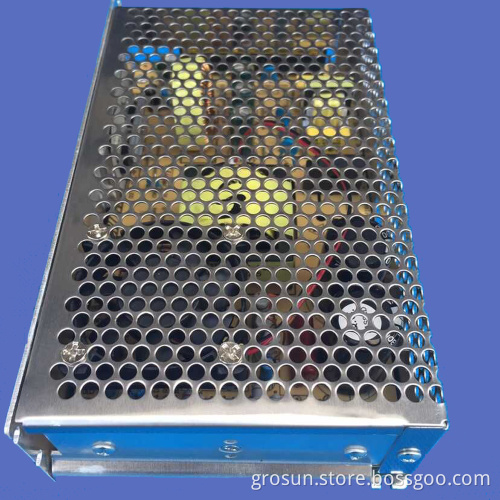

Product Pictures Shippment
Export standard hard cardboard with anti-moisture polybag
The customized packaging is acceptable.
3-5 Working days for sample order, 15-25 days for bulk order
Company Information Company Profile,
Established in 2006, is a professional manufacturer for all kinds of power supplies. our company is located in Shenzhen special economic zone. So far we have over 100 product-line staff and 20 technical staff our products have passed through CE, RoHS, CCC certifications. Our power products have been exported to South Africa, Taiwan, South American countries as well as domestic markets. Grosun makes what customer desires!

Our Service, Do offer you all-demensional "one-station" purchasing service. Esteem and loyalty help us to go further.
Our Main Products, • Wall mounted type adapter
• Desk-top type adapter
• Charger
• Aluminum shell power
• LED driver power
• Inverter

Which are widely used in set-top-boxes, CCTV cameras, LED lights, notebook computers, LED televisions, handheld game devices, etc.
Our Service 1. For you.
We can help you save cost, beat competitor then earn more profits.

2. Quality assured.
All of our products have passed strict detection, We have many advanced machineries, like Panasonic SMT machines, Panasonic AVK auto component inserters, reflow welding machines, etc. All our products have passed Four Times' Total Testing procedures before shipment.

3. No worries.
We have long-term cooperation with some industry giants like Foxconn, Videocon and UEC. Most of our products have 2 years warranty.

4. OEM is available.
Our professional R&D staff can help you design special model in order to meet your needs. Also we can print your logo on the products if needed.
FAQ 1. Are you a trading company or a factory?
We are a factory. located in Bao’an District, Shenzhen city. which is only about 20 minutes‘ drive from the airport. You are always welcome to visit our factory at any time.
2. Free sample?
Yes, Sampling cost can be returned once bulk order is confirmed.
In some case, we can arrange for free sample if freight is collect.

3. What payment methods do you accept?
We accept TT, L/C at sight, PayPal.

4. What is your defective rate?
Quality is our first goal! Normally our defective rate is below 100ppm.

5. What is your minimum order quantity (MOQ)?
Our MOQ for each model is 1000 PCS.
Samples can be sent for your test before order.
