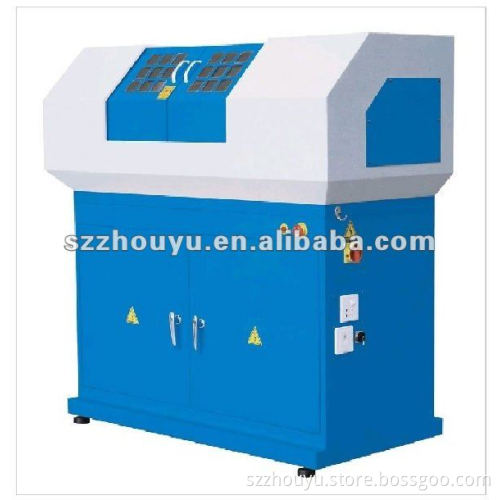

Accuracy lathe cnc CK10006
  • Accuracy lathe cnc CK10006
Accuracy lathe cnc CK10006

Accuracy lathe cnc CK10006

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
For processing video ,pls visit this link :   http://v.youku.com/v_show/id_XNDg1MjEwNzY0.html       Machine Tool
1) CE, GS standard 1.Swing over bed:250mm(10")
2.Swing over apron:110mm(4.3")
3.Max distance between centers:450mm(18")
4.The width of bed:135mm(5.3")
5.The speed of the spindle:100-3000r/min
6.The tape of the spindle:MT3
7.The max.speed of moving(X,Z)
8.The speed of feeding(X,Z):500mm/min
9.Max travel Z axis:320mm(13")    X axis:180mm(7")
10.Motor of X axis:4N.m
11.Motor of Z axis:4N.m
12.Tool position:4
13.Angle of the tool post:360°
14.Tape of tailstock:MT2
15:Travel of tailstock:50mm(2")
16.Position accuracy:0.015mm
17:Repeatability position accuracy:0.01mm
17.Tool post return orientation precision :0.005mm
18.Main motor power:1000w
19.Machine size(LxWxH):1460x760x1450mm
20.Packing size(LxWxH):1630x1070x1685mm
21.Weight(N.W/G.W):440/530KG     For processing video ,pls visit this link :   http://v.youku.com/v_show/id_XNDg1MjEwNzY0.html     standard accessories :
