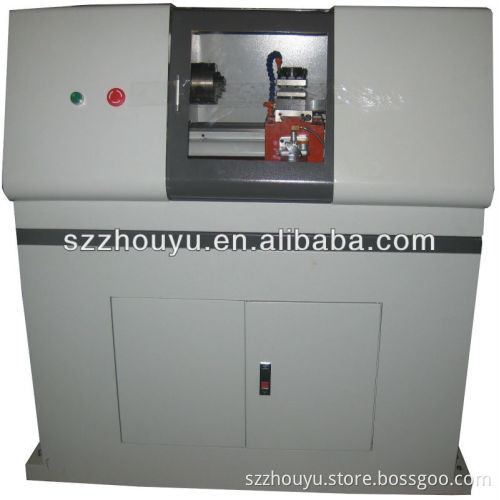

Accuracy mini cnc lathe TCC10004D with work table for sale

Get Latest Price

Delivery Time:: 20 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

For processing video ,pls visit this link : http://v.youku.com/v_show/id_XNDg1MjEwNzY0.html (1) Swing over bed: 210mm (2) Distance between centers: 400mm (3) Width of bed: 100mm (4) Spindle speed: 50-2250r/min (5) Spindle taper: Mt3 (6) Z-axis moving speed: 2000mm/min (7) X-axis moving speed: 1000mm/min (8) Z-axis feeding speed: 500mm/min (9) X-axis feeding speed: 250mm/min (10) Z-axis torque: 1.5Nm (11) X-axis torque: 2Nm (12) Z-axis travel: 250mm (13) X-axis trabvel: 80mm (14) Motor of Z-axis: 1.5N (15) Motor of X-axis: 2N (16) Tool position: 4 (17) Angle of the tool post: 360° (18) Taper of tailstock: Mt2 (19) Travel of tailstock: 50mm (20) X,Z-axis position accuracy: 0.01mm (21) Position accuracy of tools: 0.005mm (22) Main motor porwer: 550W (23)Machine size(LxWxH):1060x700x600mm (24) Packing size(LxWxH): 1080x784x750mm (25)Net/ Gross Weight: 140/168kg
