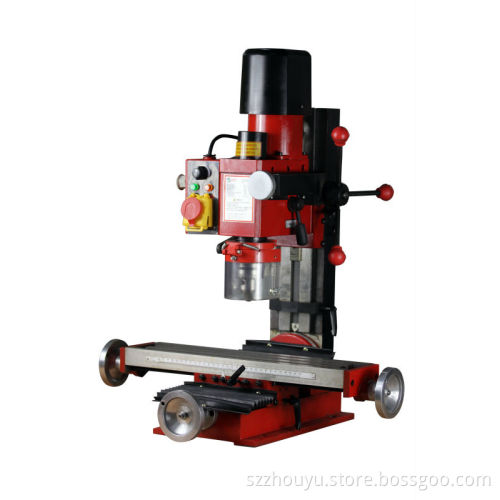

Micro Vertical Drilling & Milling Machine MX10002 for metal working DIY Hobby

Get Latest Price

Delivery Time:: 2 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Micro Vertical Drilling & Milling Machine MX10002 for metal working DIY Hobby Technical parameters: 1.Max. Drilling capacity: 13mm 2.Max. End milling capacity: 16mm 3.Max. Face milling capacity: 30mm 4.Headstock travel (Z): 180mm 5.Cross axis (X): 220mm 6.Longitudinal axis (Y) : 100mm 7.Throat : 170mm 8.Head tilt : 45°L, 45°R 9.Max. distance spindle to table: 280mm 10.Spindle taper MT3 11.Motor output power 550 w 12.Spindle speed : 13.Low range 100-1100 rpm±10% 14.High range 100-2500rpm±10% Table effective size :390x92mm 15.T-slot size:12mm 16.Overal dimension (LxWxH) :520x500x760mm 17.Weight (Net/Gross):62/80KG 18.Packing size (LxWxH):720x550x630mm 19.Accessories:13mm Drill chuck , Wrench set , Oil can20. 20.Working material:steel ,hard metal ,soft metal ,wood ,plastic
