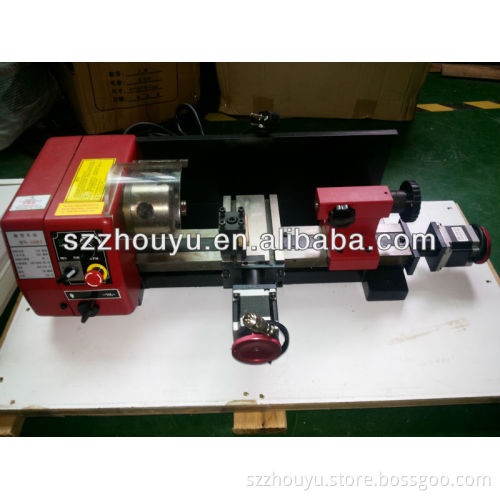

mini lathe machine C10000
- Delivery Time:
- 20 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
Installation video of C10000 mini cnc lathe: http://v.youku.com/v_show/id_XNDk1NzIyMzcy.html (1) Swing over bed 140 mm
(2) Distance between centers 250 mm
(3) Hole through spindle 10 mm
(4) Spindle taper MT2
(5) Tailstock taper MT1
(6) Spindle speed 100-2000 rpm±10%
(7) Cross slide travel 50 mm
(8) Motor output power 150 W
(9) Range of threads Metric version 0.5-1.25 mm (5 thread pitches)
(10) Imperial version 16-24 TPI (5 thread pitches)
(11) Overall dimension (LxWxH) 680x420x230 mm
(12) Weight (Net/Gross) 29/38KG This small cnc lathe machine can be used for hobbyist,DIY model makers,and schools as a cnc entrance machine. Can work with wood,plastic,and soft metal.
(2) Distance between centers 250 mm
(3) Hole through spindle 10 mm
(4) Spindle taper MT2
(5) Tailstock taper MT1
(6) Spindle speed 100-2000 rpm±10%
(7) Cross slide travel 50 mm
(8) Motor output power 150 W
(9) Range of threads Metric version 0.5-1.25 mm (5 thread pitches)
(10) Imperial version 16-24 TPI (5 thread pitches)
(11) Overall dimension (LxWxH) 680x420x230 mm
(12) Weight (Net/Gross) 29/38KG This small cnc lathe machine can be used for hobbyist,DIY model makers,and schools as a cnc entrance machine. Can work with wood,plastic,and soft metal.
