AC three phase three line low pass power EMI line filter

Three Phase Three Line Emi Filter Product Description Specification

Item	High Performance Three Phase Three Line Emi Filter
Model	YX81G1-10A-S
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440VAC
Rated Current	1A~30A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	115VAC/60HZ     1.2mA Max
MOQ	10pcs
Price	USD13.8~18.9/Meter
Lead Time	7~18 weekday

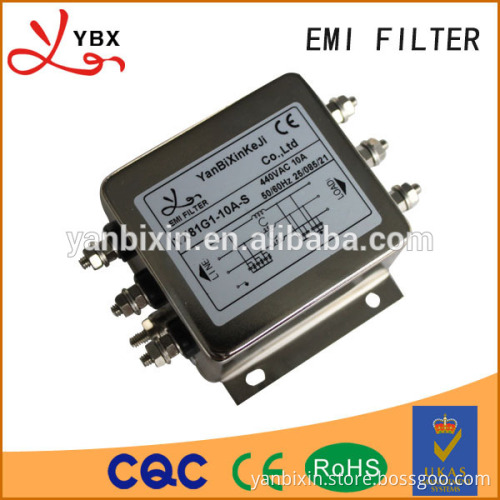

  Electrical schematic:                                                             Outline dimension drawing:             The photo:        The certificate:     Packaging & Shipping   Packaging High Performance Three Phase Three Line Emi Filter: CTN/6pcs N/G W.: 3.3/3.8KG Measures: 0.455*0.368*0.22m   Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services Sample Sample Fee: Negotiate Sample Time: 3~5 days   Payment ---Payment terms: Western Union, D/P, T/T,L/C ---Please remember to leave the correct contact information for delivery. Company Information   1. Integrates development, manufacturing and sell in-house 2. Quality assurance and certification: ISO 9001 CE CQC ROHS 3. Yearly capacity: 600000-1000000 pcs
