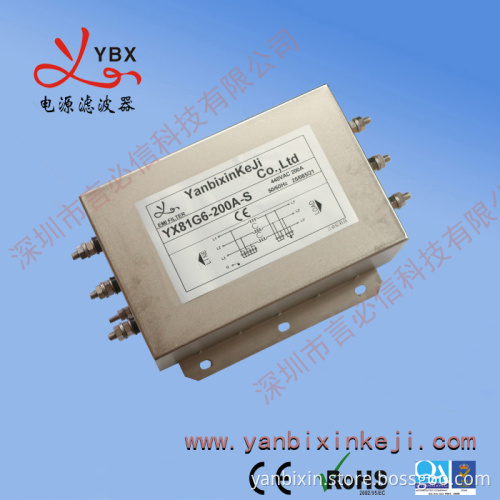

high performance three phase double stage EMI noise rfi filter

High profomance inverter special EMI Filter Product Description Specification

Item	Inverter noise  Filter
Model	inverter noise Filter -YX81G6
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Rated Current	1A-800A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	115VAC/60HZ
MOQ	1pcs
Price	USD200~252/Meter
Lead Time	5~15 weekday for Internal Power Filter

    Electrical schematic Outline dimension drawing Pictures   Certificate Packaging & Shipping   Packaging Internal Power Filter: CTN/1pcs N/G W.: 19/20KG Measures: 0.565*0.285*0.205 m   Shipment ---Shipping terms: DHL, UPS, FEDEX, TNT, EMS ---Port is Shenzhenor as requests. Our Services     Sample
Sample Fee: Negotiate
Sample Time: 3~5 days

Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.   Company Information    1. Integrates development, manufacturing and sell in-house
2. Quality assurance and certification: ISO 9001:2008  CE  ROHS
3. Yearly capacity: 600000-1000000 pcs
