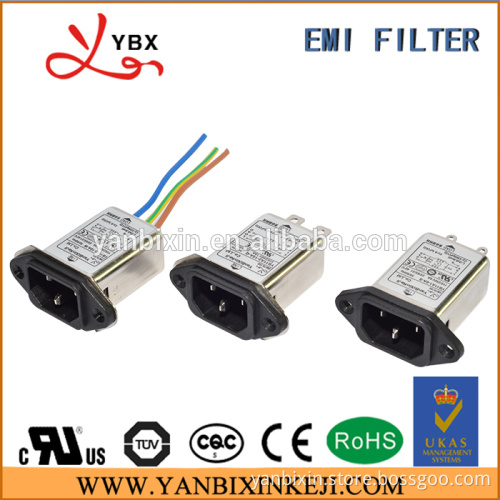

Low Loss High Quality EMI AC Socket EMI line Filter

Low Loss Medical Appliance High Quality EMI AC Socket EMI noise  Filter Product Description Specification

Item	High Quality EMI AC Socket EMI Filter
Model	High Quality EMI AC Socket EMI Filter -YB11A2
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1A 3A 6A 8A 10A 15A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	115VAC/60HZ     0.3mA Max.     250VAC/60HZ    0.6mA Max
MOQ	100pcs
Price	USD1.5~2.5/Meter
Lead Time	5~15 weekday for High Quality EMI AC Socket EMI Filter



Model No.	Rated Current @40°C	Electrical Schematic	Mechanical Diagram	Leakage current 250V/50Hz	Terminal Options*
					Q	S	W
YB11A2-1A-Q	1A	Fig.1	Fig.1	<0.5mA	Fast-on	Solder	Wire
YB11A2-3A-Q	3A
YB11A2-6A-Q	6A
YB11A2-8A-Q	8A
YB11A2-10A-Q	10A
YB11A2-15A-Q	10A
