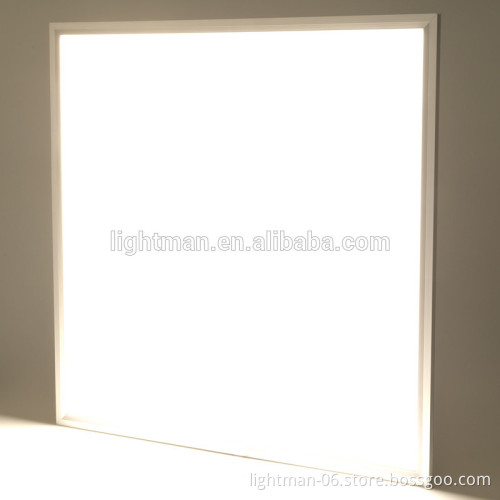

Residential Lighting IP44 RA80 90lm/w 48W LED Ceiling Panel Lamp 60x60

Residential Lighting IP44 RA80 90lm/w 48W LED Ceiling Panel Lamp 60x60 Specification You are here: Home > Product Categories > Edge-lit LED Panel Light > 600x600 LED Panel Light
                    Residential Lighting IP44 RA80 90lm/w 48W LED Ceiling Panel Lamp 60x60
        The Specifications of led panel light 60x60

Model No	LM-P606036	LM-P606040	LM-P606048	LM-P606054
Power Consumption	36 W	40 W	48 W	54 W
Luminous Flux (Lm)	2880-3240 Lm	3200-3600 Lm	4320-4560 Lm	4320-4860 Lm
LED Qty(pcs)	204 pcs	204 pcs	252 pcs	300 pcs
LED Type	SMD 2835
Color Temperature (K)	2800 - 7000K
Color	Warm White/Pure Whitel/Cool White
Dimension	595x595x10mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>95lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 285V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PC cover
IP Rating	IP54
Operating Temperature	-25°~70°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years

      What are the advantages of Lightman led panel light?
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of LED light panel for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED flat panel light direct replace T8 and T5 fixtures.
• Lightman LED panel light is with high efficiency, maximum uniformity by Mitsubishi Light guide plate.
• The beam angle of led panel light is160°.
• Innovated structure heating design.
• EVA foam protects the led panel light guide plate from reshaping.
• Constant current driver with a power factor of 0.95;
• Lock cable DC plug for led flat panel light.
• LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.   Product Details Fireproof PC Diffusion Plate and 6063 Aluminum Frame with Better Heat Dissipation   Wiring Connection Diagram: Product Application   Installation&Packing   Company Information
