No glare design UGR<19 36W acrylic light guide panel 600x600

No glare design 36W acrylic light guide panel 600x600 Specification You are here: Home > Product Categories > Edge-lit LED Panel Light > 600x600 LED Panel Light   You may also be interested in below products. Click the pictures to view more:

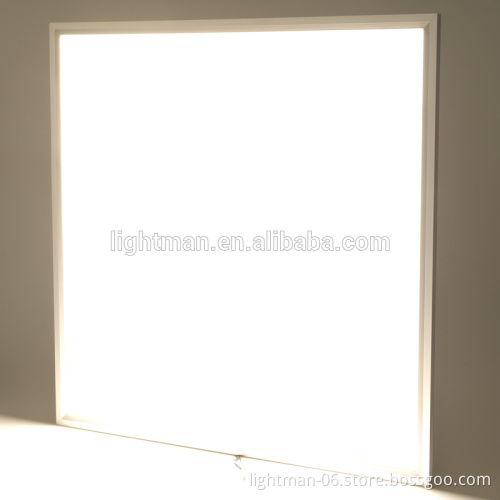

                                     No glare design UGR<19 36W acrylic light guide panel 600x600   LED Panel Light Effect

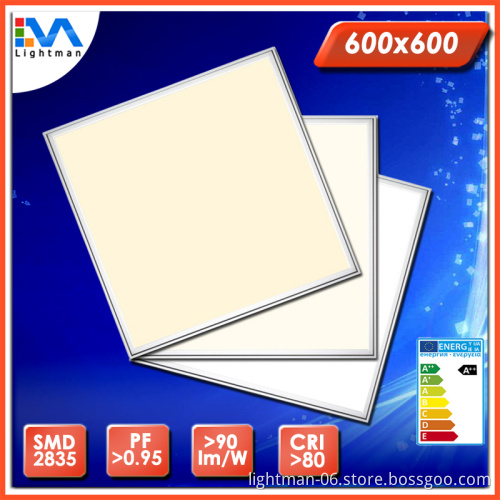

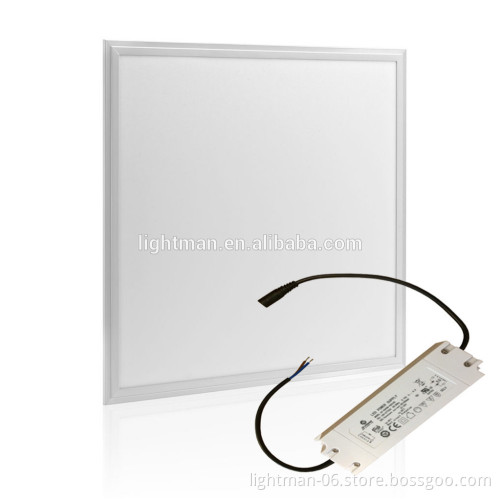

Mitsubishi Light Guide Plate   Specifications of  2'x2'/light guide panel 600x600

Model No	LM-P606036	LM-P606040	LM-P606048	LM-P606054
Power Consumption	36 W	40 W	48 W	54 W
Luminous Flux (Lm)	3240-3600 Lm	3600-4000 Lm	4320-4800 Lm	4860-5400 Lm
LED Qty(pcs)	192 pcs	192 pcs	252 pcs	300 pcs
LED Type	SMD 2835
Color Temperature (K)	2800 - 7000K
Color	Warm/Natural/Cool White
Dimension	595x595x10mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>90lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PC cover
IP Rating	IP54
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years

  What are the advantages of Lightman Light Guide Panel 600x600?
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of LED light panel for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED flat panel light direct replace T8 and T5 fixtures.
• Lightman LED panel light is with high efficiency, maximum uniformity by Mitsubishi Light guide plate.
• The beam angle of led panel light is160°.
• Innovated structure heating design.
• EVA foam protects the led panel light guide plate from reshaping.
• Constant current driver with a power factor of 0.95;
• Lock cable DC plug for led flat panel light.
• LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.     Product Details
Light guide panel Wiring Diagram
Product Application
