High Brightness UL Certifited 604x604 dimmable led light ceiling 40W

High Brightness UL Certifited 604x604 dimmable led light ceiling 40W Specifications You are here: Home > Product Categories > UL&DLC LED Panel Light > 2ft x2ft LED Panel Light                                           High Brightness UL Certifited 604x604 dimmable led light ceiling 40W     The Specifications of 2ft x 2ft /604x604 led flat panel fixture

Model No	PL-2x2-30W	PL-2x2-36W	PL-2x2-40W	PL-2x2-46W	PL-2x2-36W-130
UL/DLC Model	ET-22-30WD	ET-22-36WD	ET-22-40WD	ET-22-46WD	ET-22-36WD-130
Power Consumption	30 W	36 W	40 W	46W	36W
CW/NW Light Efficacy	114lm/w	105lm/w	105lm/w	104lm/w	134lm/w
WW Light Efficacy	104lm/w	103lm/w	103lm/w	102lm/w	130lm/w
Dimension (mm)	604x604x10mm
Color Temperature (K)	3000K/3500K/4000K/4500K/5000K
LED Type	SMD 2835
Input Voltage	AC100-277V, 50/60Hz
Beam Angle (degree)	>120°
CRI	>80Ra
Power Factor	>0.95
THD	<15%
Working Environment	Indoor
Material of Body	Aluminum Frame + Mitsubishi LGP + PS Diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Dimmable	0~10V(UL)/ Dali/ PWM/ Triac Optional
Installation Option	Ceiling Recessed/ Suspended/ Surface/ Wall Mount
Life span	60,000hours
Warranty	5 Years

What are the advantages of Lightman LED Panel Light?
•110lm/W high lumen efficacy, with high CRI more than 80Ra, energy saving LED panel.
•UL, DLC, Lighting Facts, FCC certified.
•LM80 26x46mil 2835 SMD, 97.1% lumen maintenance @ 6,000 hours.
•Electrophoresis technology provides white appearance, with superb heat dissipation performance.
•EnGap technology ensures the high lumen efficacy and protection of the LEDs.
•LGP expansion test, UV yellowing-proof test and the back plate light-leaking make  sure the high quality.
•Driver 100% 12h aging test and pre-delivery inspection ensure the stable performance.
•Dimmbale: 0-10V dimming for option.
•5 years warranty.
•Easy to install by special design safe lock. Product Details
    Product Application

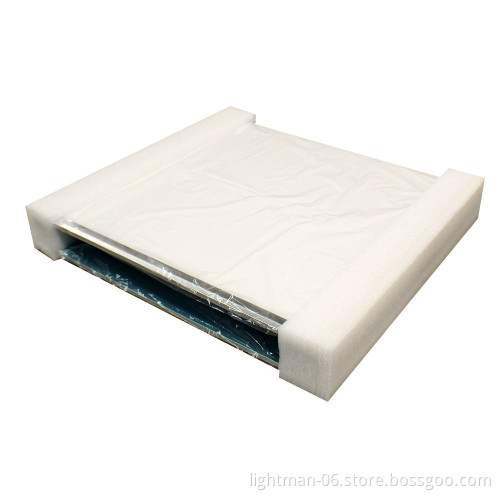

  Installation&Packing
