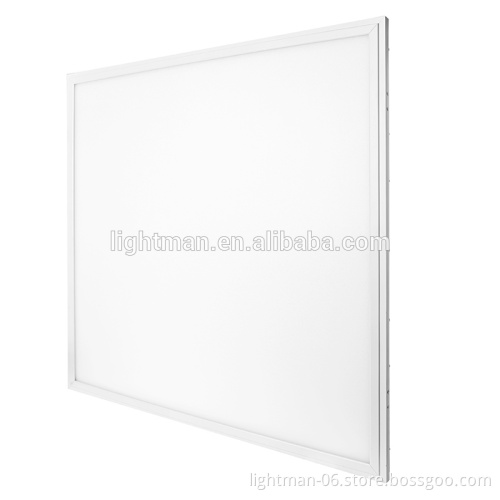

Super Energy Saving IP44 50W 62x62 LED Light Panel Dimmable

Super Energy Saving IP44 50W 62x62 LED Light Panel Dimmable Specification You are here: Home > Product Categories > Dimmable LED Panel Light > 0-10V- 620x620 LED Panel Light         Note: UK Warehouse, speeds up shipping! 1). Warehouse in UK. Stocked items can be shipped to European countries from our UK warehouse with shorter delivery time and lower freight. Ordered items will be despatched within 24 hours after the payment is received. Please note that orders placed on weekends and public holidays will be despatched on the next working day. 2). Items will generally reach UK buyer within 1-2 working days, reach EU buyer within 3-4 working days.                  Super Energy Saving IP44 50W 62x62 LED Light Panel Dimmable    Specifications of 0-10V Dimmable LED Panel Light 62x62:

Model No	PL-626236	PL-626240	PL-626250	PL-626260
Power Consumption	36 W	40 W	50 W	60 W
Luminous Flux (Lm)	3240-3600 Lm	3600-4000 Lm	4500-5000Lm	7200-8000 Lm
LED Qty(pcs)	192 pcs	204 pcs	254 pcs	300 pcs
LED Type	SMD 2835
Color Temperature (K)	2800 - 7000K
Color	Warm/Natural/Cool White
Dimension	620x620x10mm
Beam Angle (degree)	>120°
CRI	>80
Light Efficiency (lm/w)	>90lm/w
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PC cover
IP Rating	IP44
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years

  What are the advantages of Lightman 0-10V Dimmable LED Panel Light?
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of LED light panel for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED panel light direct replace T8 and T5 fixtures.
• LED panel light is with high efficiency, maximum uniformity by Mitsubishi Light guide plate.
• The beam angle of led panel light is120°.
• The led panel light is 0-10V dimmable.
• Innovated structure heating design.
• EVA foam protects the light guide plate from reshaping.
• Constant current driver with a power factor of 0.95;
• Lock cable DC plug for 0-10V dimmable led panel light.
• LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.   Product Details     0-10V Brightness Dimmable LED Driver:   LED Dimmer: Wiring Connection Diagram: Product Application Installation&Packing   Company Information
  Certifications
