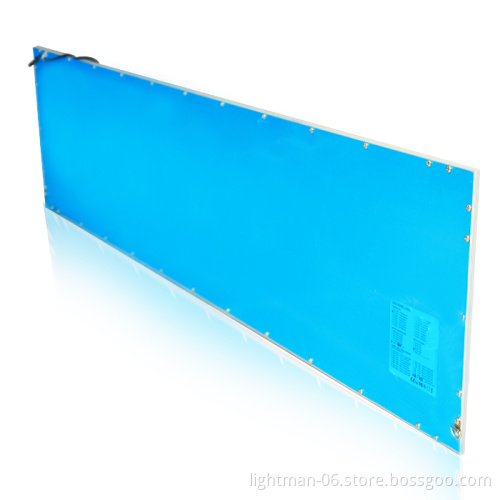

CE TUV Approved 0-10V Dimmable Ceiling Mount LED Panel Lighting 120x30

CE TUV Approved 0-10V Dimmable Ceiling Mount LED Panel Lighting 120x30 Specification You are here: Home > Product Categories > Dimmable LED Panel Light > 0-10V-1200x300 LED Panel Light   Note: UK Warehouse, speeds up shipping! 1). Warehouse in UK. Stocked items can be shipped to European countries from our UK warehouse with lower freight and shorter delivery time. Ordered items will be despatched within 24 hours after the payment is received.
2). Items will generally reach UK buyer within 1-2 working days, reach EU buyer within 3-4 working days.                                   CE TUV Approved 0-10V Dimmable Ceiling Mount LED Panel Lighting 120x30
Specifications of LED Panel Light 120x30:

Model No	LM-P1203036	LM-P1203040	LM-P1203048	LM-P1203054
Power Consumption	36 W	40 W	48 W	54 W
Luminous Flux (Lm)	3240-3600 Lm	3600-4000 Lm	4320-4800Lm	4860-5400 Lm
LED Qty(pcs)	204 pcs	204 pcs	252 pcs	300 pcs
LED Type	SMD 2835
Color Temperature (K)	2800 - 7000K
Color	Warm/Natural/Cool White
Dimension	1195x295x10mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>90lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PC cover
IP Rating	IP54
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years


  What are the advantages of Lightman CCT Dimmable LED Panel Light?
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of LED light panel for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED flat panel light direct replace T8 and T5 fixtures.
• Lightman LED panel light is with high efficiency, maximum uniformity by Mitsubishi Light guide plate.
• The beam angle of led panel light is160°.
• Innovated structure heating design.
• EVA foam protects the led panel light guide plate from reshaping.
• Constant current driver with a power factor of 0.95;
• Lock cable DC plug for led flat panel light.
• LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.   Product Details   LED Dimmer:     Wiring Connection Diagram: Product Application Installation&Packing   Company Information
