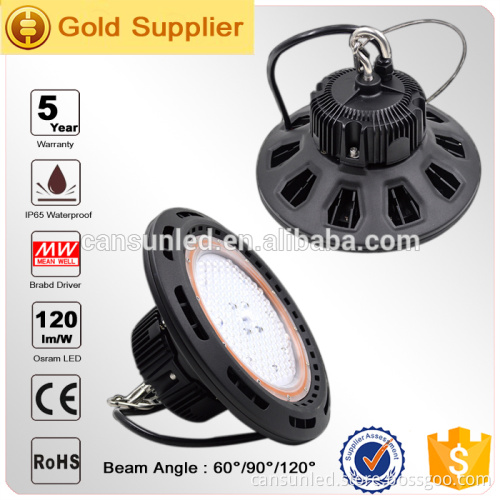

IP65 explosion proof led light 100w 150w 200w ufo led high bay light

IP65 explosion proof led light 100w 150w 200w ufo led high bay light
  Product Description 1. Cansun supply high efficiency, 67% energy saving in the same power efficiency compared to traditional spotlight;
2. Longer lifespan, semiconductor chips over 50,000 hours life span;
3. Healthy Lighting, exclude UV and IR and without ray radiation;
4. Environmental friendly, exclude harmful elements like mercury and xenon, easy recovering;
5. High performance isolated constant current driver, no strobe flesh;
6. Anti-glare deeply embedded structure effectively preventing glare;
7. Patent LED source with high quality Cree chips, providing higher efficiency and CRI;
8. Advanced thermal design, combine die casting and aluminum extrusion, less thermal resistance for higher thermal efficiency;   Specifications

Dimension UFO High Bay Light
Item name	100W UFO High Bay	160W UFO High Bay	240W UFO High Bay
Item code	CS100UFO01	CS160UFO01	CS240UFO01
Power(w)	100W	160W	240W
Voltage	AC 90-265	AC 90-265	AC 90-265
Power factor	≥0.95	≥0.95	≥0.95
Dimmable	No	No	No
Lumen(lm)	>12000	>19000	>28000
Color temperature	Warm white:2700K-3200K & Nature white:4000K-4500K  & Cool white: 6000-6500K
CRI (Ra>)	>80	>80	>80
Beam angle	40°/ 60° / 90° / 120°	40°/ 60° / 90° / 120°	40°/ 60° / 90° / 120°
LED chip	154pcs LED 3030	245pcs LED 3030	360pcs LED 3030
Central light intensity(cd)	18095	24983	45850
Waterproof Rating	IP65	IP65	IP65
Working Temperature(℃)	-40~+50	-40~+50	-40~+50
Lamp efficiency(lm/w)	130LM/W	130LM/W	130LM/W
Light degradation rate	25000h ≤ 30%	25000h ≤ 30%	25000h ≤ 30%
Working lifetime(h)	50,000	50,000	50,000
Driver Brand	Meanwell	Meanwell	Meanwell
Lamp body material	Aluminum	Aluminum	Aluminum
Dimensions (mm)	Φ260X178	Φ325X188	Φ400X205
Carton size(mm)	310*310*180	380*380*190	460*460*200
Net weight(kg)	2.42	3.35	5.2
Certification	CE, UL, DLC, TUV, ROHS	CE, UL, DLC, TUV, ROHS	CE, UL, DLC, TUV, ROHS
Warranty	5 years	5 years	5 years
Installation Type	Hook hanging & Chain Hanging & Mount suface Hang & Pole Hanging
Application	Station, Marketplace, Factory, Workshop,Warehouse,  Airport, Gymnasium Waiting room

  Detailed Images Product Details

LED LUMINOUS SOURCE    New Cansun All-in-one ufo high bay light utilize Philips 3030  LED Luminous source, which guarantees excellent . lumen output up to 120lm/W, great stability and fantastic light. Each LED owns electrostatic protection component, avoiding  electrostatic damage.

Delicate Structure Design   Unique UFO shape design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED long life span.   The surface of radiator is treated by antiseptic and anodic oxidation; With compact structure and aesthetic appearance.

  UFO High Bay Light Exploded view   For Different application requirement, Cansun customised different types of beam angles for customers,
at the moment we have 40°, 60°, 90°, 120° beam angle available.   UFO high bay light installation :       Note : Professionals for products installation;
Please cut off the input power immediately If any abnormal,
Please do lightning preventing the power input side to ensure the stability of voltage.
Please install it in dry, airy and clean environment
There are high-pressure part of the lamp, do not disassemble to avoid electric shock.   Production Flow Before shipment, QC will 24hours aging testing, to ensure product quality 100% . Application Projects   Company Information   Our Services 1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
6. We are a factory manufacturing led indoor lamps,best production capability ,best quality control, Best Service .
7. Inspected by the Inspection Institution of Bureau Veritas Certification.
8.100% QC inspection Before Shippment. FAQ Q:Are you manufacturer or trade company ?where is your company or factory?
We are professional manufacturer of commercial lighting for almost 8 years. located Shenzhen City china.

Q:What is you main products?
A: LED street light, solar street lights, UFO LED high bay lights, tunnel light, flood lights,etc. outdoor lights  .

Q:Where are your main export markets?
A: north America ,West Europe,Asia and other countries and regions.

Q: Can I order one piece for sample to test the quality?
A: Yes, We suggest to check the sample before order.

Q: What's the warranty ? Once the lamp broken,can i get any service from you ?
A: Our LED street light standard warranty is 3 years,also according the customer demand. when the lamp broken (unartificial)during the warranty period,we will send whole lamp or replacement for free ,but the buyer carry the freight.   ***************Send your Inquiry Details in the Below, Click " Send " Now!*****************
