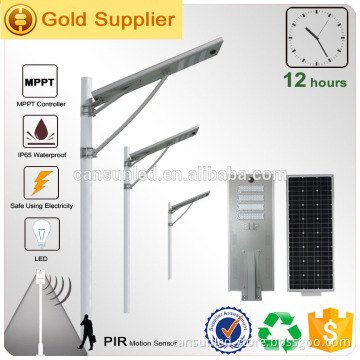

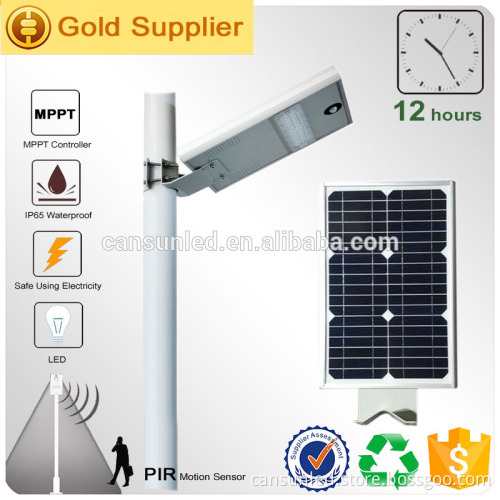

IP65 with PIR motion sensor led 15 watt solar street light

   IP65 with PIR motion sensor led 15 watt solar street light Product Description Introducing for Solar street light

New design of the integrated solar street light absorbs the inspirationand energy from the universe, and combines
today's best green energy portfolio (solar energy, semiconductor LED light source, dedicated battery for street lights).
It uses excellent practical control technology,

such as micro controller, themal infrared human body induction etc.,combines with the simple integrated structure
design,

A new revolutionary product combining solar and LED technology from Cansun Lighting,

Perfect implementation of low power consumption, but high brightness (average 5W power consumption is 100W
incandescent lamp's illumination), long life span and free maintenance, excellent waterproof and heat dissipation,
at the same time with convenient installation.

All the advantages above make it the best contributed and creative patent product of our company.

  Application: Street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting; boat dock lighting; sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting. Specifications Electrical Specifications :

Model No.	CS15WSL01	CS25WSL01	CS30WSL01	CS50WSL01	CS60WSL01	CS80WSL01	CS100WSL01
Size (mm)	430*272*40	680*272*40	820*272*40	1070*272*40	1070*398*40	1070*398*40	1070*398*40
Light Power	15W	25W	30W	50W	60W	80W	100W
LEDS (SMD3030)	20pcs LED	30pcs LED	60pcs LED	90pcs LED	120pcs LED	120pcs LED	120pcs LED
Luminous Flux	1800lm ± 5%	3000lm ± 5%	3600lm ± 5%	6000lm ± 5%	7200lm ± 5%	9600lm ± 5%	12000lm ± 5%
Solar Panel Spec.	18V / 20W	18V / 30W	18V / 40W	18V / 70W	18V / 70W	18V / 100W	18V / 120W
Li-Battery Spec.	12.6V / 11AH	12.6V/15.4AH	12.6V/17.6AH	12.6V/26.4AH	12.6V /42AH	12.6V /50AH	12.6V /60AH
Working (100% Power)	>12 hours	>12 hours	>12 hours	>12 hours	>15 hours	>10 hours	>8 hours
Working (50% Power)	>35 hours	>35 hours	>35 hours	>35 hours	>40 hours	>30 hours	>15 hours
Installation Height	5m-6m	5m-6m	5m-6m	8m-9m	8m-9m	8m-12m	8m-12m
Installation Distance	10m-15m	15m-20m	15m-20m	20m-25m	20m-25m	25m-30m	25m-30m

--------------------------------------------------------------------------------------------------------------------------------------- Model No. : CS25WSL01                                                                          Beam Angle:140.20°(50%Imax)   Photometric Specifications :

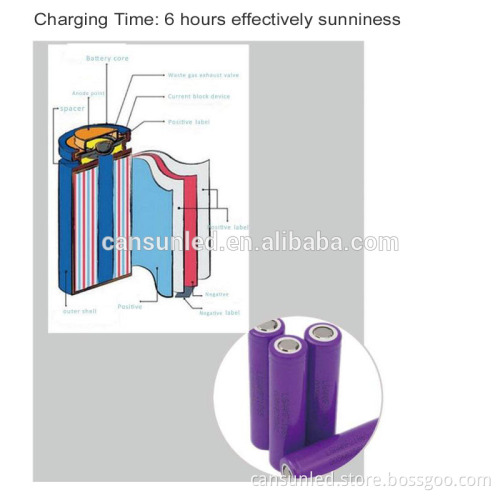

    Charge Time  : 6 Hours     Chagre Temperature :  <60 ℃
    Discharge Temperature :   - 20℃~ + 60 ℃
    Switch Lights Sense Threshold :  on≤10 LXS . off≥15 LXS
    Color Temperature  : 3000K/4000K/5000K/6000K       Mechanical Specifications :
   Installation Height                       5-6m
   Installation Distance                   15-20m
   Lamp Pole Diameter                   40-60mm
   Packaging(1PC/ CTN)                 80*35*21CM
   Net Weight                                 6.80KG/CTN       √  1. Switching mode: Time control + light sensor control+ motion sensor control.
√  2. Working time: ignite 10 to 12 hours every day, sustainable 3-5 rainy day . Product Details

LED LUMINOUS SOURCE    New Cansun All-in-one solar street light utilize Philips 3030  LED Luminous source, which guarantees excellent . lumen output up to 120lm/W, geat stability and fantastic light. Each LED owns electrostatic protection component, avoiding  electrostatic damage.



Infrared body sensor , Microwave induction   With infrared body induction controlled technology,   it can store energy during the daylight, and modulate it on/off when people pass through at night. During the night, the light can work automatically  controlled by the smart sensor;   It will be on bright mode when people pass throught and on energy-saving mode when not (working mode can be adjusted according to client's demands).

  Use human movement infrared sensor, when no person here, the brightness will be 50% total to save energy, distance radius of 7 meters from person, display brightness of 100% diagram below.     All in one design

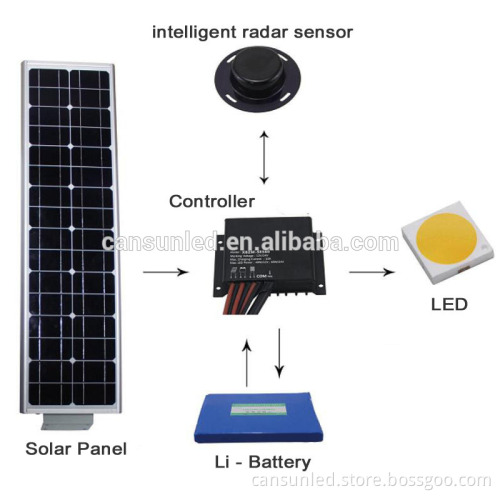

The solar panel will receive the solar energy and be stored in the Lithium-Iron battery through the charge

controller, to finally be used to illuminate at night.

Due to the use of high-end LED technology,the solar light will be 100% optimized.

UNIQUE LUMINARIES DESIGN   The luminaries can be adjusted to different angles, depending    on the latitude and characteristics of the land, lt can be installed    vertically and horizontally, or on a wall, it's designed to install,    maintain or repair easily, maintain or repair. It's surface can absorb    all the solar energy and it's infraed body sensor modulates to save    energy during night-time,   All these are without cables.   The Lithium-Iron barrery is compressed and has three main    characteristics: reduced size, high-capacity and long life-span.

FLEXIBLE INSTALLATION  √  The installation can be adjusted according to different environments or illumination needs.      When install the integrated solar led street, please choose a posi-tion with enough sunshine and fully exposure,      please note the solar panel must be fully exposured, without any shelter.   Packaging & Shipping Shipping : 1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods. Company Information   Our Services 1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.

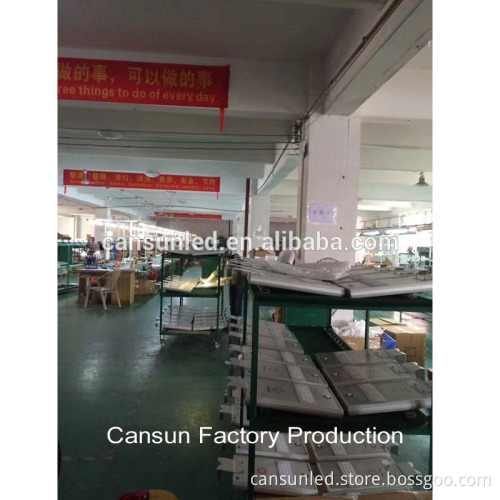

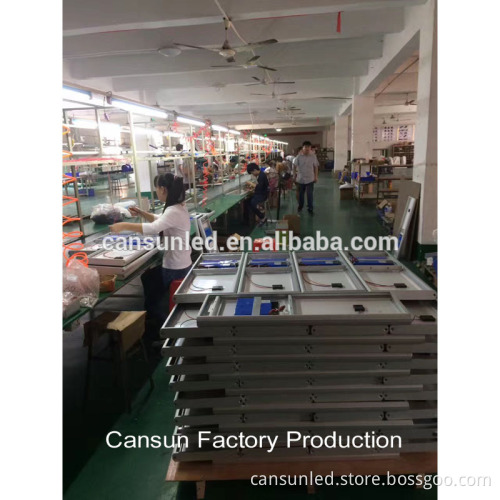

6. We are a factory manufacturing led indoor lamps,best production capability ,best quality control, Best Service .
7. Inspected by the Inspection Institution of Bureau Veritas Certification.
8.100% QC inspection Before Shippment. Certifications   FAQ   Q:Are you manufacturer or trade company ?where is your company or factory?

We are professional manufacturer of led street light for almost 8 years. located ShenzhenCity china.

Q:What is you main products?

A: LED street light,solar street lights,LED high bay lights,tunnel light, flood lights,etc. outdoor lights  .

Q:Where are your main export markets?

A: north America ,West Europe,Asia and other countries and regions.

Q: Can I order one piece for sample to test the quality?
A: Yes, We suggest to check the sample before order.

Q:What's the warranty ? Once the lamp broken,can i get any service from you ?

Our LED street light standard warranty is 3 years,also according the customer demand. when the lamp broken

(unartificial)during the warranty period,we will send whole lamp or replacement for free ,but the buyer carry the freight.   ***************Send your Inquiry Details in the Below, Click " Send " Now!*****************
