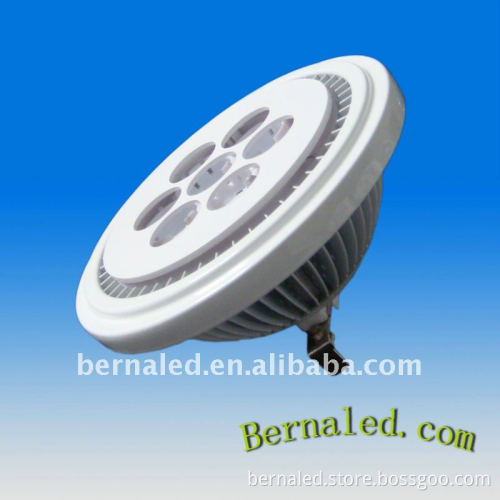

White AR111 7X2W CREE-XPE

Specifications Ar111 7*2w CREE LED

1) 7x2w /G53/DC12V

2)3 year warranty

3)850-950lm

4)High efficiency heat-sink

CREE G53 AR111 7X2W Technology parameter >Electrical Charactristics 1) LED Quantity: 7pcs CREE-XPE LED 2) Input Voltage: DC12V 3)Input current:400-420mA 4)Power factor:0.8- 5)Power consumption:7x2w >Lighting Technical Characteristics 1) Initial Lumen: 850-950Lm 2) Color Temperature: 2700-3300K,4000-4500K,5500-6000K 3) Beam Angle: 15°,30°,45° 4) Color Rendring Index(CCT): ≥80 5) Lumen Maintenance: 80%Lumen Maintenance at 35000 hours >General Characteristics 1) Lampholder type: G53 2) Protection Rating: IP55 3) Working Temperature: -­40°C or 50°C 4) Color of shell: milk white 5) Surface Treatment :Paint >Product Dimension 1) Dimension: D111mm x H59mm. 2)Technical:

BN-AR111-7X2W	Main material:	Aluminium Oxide + Ceramic-tile base
	Product size:	Dia 111 * H59mm
	LED chip:	CREE-XPE
	LED quantity:	7*2W
	Color Temperature:	WW/NW/W
	Power:	7X2W
	Voltage:	DC12V
	Brightness:	850-950lm (w)
	Viewing angle:	15/30/45D

>Applications
1) Recess lighting, Shelf Lighting, Ceiling /Wall Coves
2) Cabinet and under counter lighting
3) Back lighting, Step Lighting, Light boxes,ceiling light >Picture of effectiveness
