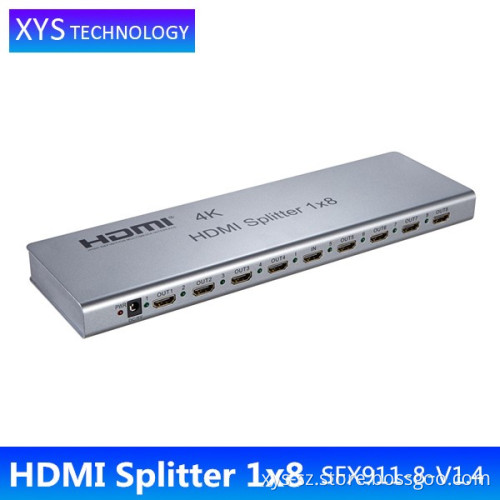

HDMI Splitter 1X8 1 in 8 out for Full 3D video 4Kx2K with IR &EDID management, RS232

Our Service 1.Only foucs on Medium High End Products
2.support OEM&ODM order
3.support SILK PRINT LOGO on products
4.support CUSTOMIZED PACKAGE Detailed Images INTRODUCTION This 1x8 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to eight HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160/30Hz.
This splitter supports EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is also built-in IR extension function, can work with our hdmi repeater which has IR-RX receiving the IR command to control the source. Features Support HDMI 1.4 ,HDCP1.4
Support 3D video format
Support CEC (only output1)
Support high resolution up to 3840X2160/30Hz
Support highest rate of 3.4G and TMDS clock can be up to 340 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable, input up to 8 meters,output up to 8 meters.
Support one single HDMI source，accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
Built-in IR extension function
Remote control the source （via the IR-RX of HDMI repeater which splitter works with to receive the IR command)
Support serial port online upgrade
Support EDID management
5V/2A power adapter
Specifications: HDMI version ………………………………………………………………………………. HDMI 1.4
HDCP version ……………………………………….……………………………………. HDCP 1.4
HDMI resolution ……………………………….. ……….. ………..…………up to 3840x2160/30Hz
Support video format ………………………………..…………………………8/10/12bit Deep color
Support audio format………………..………. …….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………………………………………………….340MHz
Max baud rate……………….…….………………….………………………………………..3.4Gbps
Input cable distance.…………………………………………….≤8m AWG26 HDMI standard cable
Output cable distance……………………………………………≤8m AWG26 HDMI standard cable
Max working current……………………………………………………………………………....1.4 A
Power adapter format………………….….input AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A
Operating Temperature range……………………………..…………….………………(-15 to +55℃)
Dimension (L x W x H)………………...............…………..……………………….310x90x24 (mm)
Weight…….…..………………………………………………………..…….……………………854g Connecting Pictures

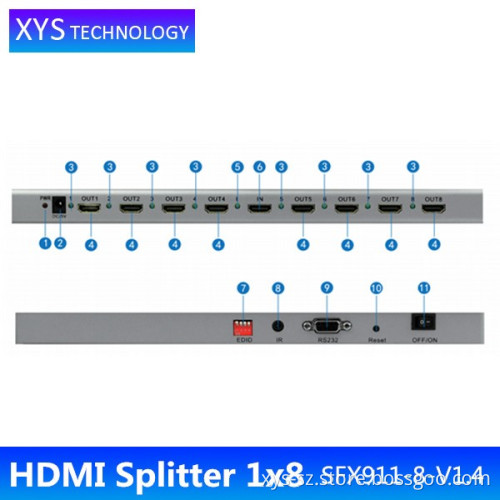

Product interface pictures ①：Power adapter indicator
②：5V Power Interface
③：LED Output indicator
④：HDMI output
⑤：LED Input Indicator
⑥：HDMI input
⑦：DIP switch，using for EDID management
⑧：IR TX Expansion Interface
⑨：RS232 port, serial port online upgrade
⑩：Reset button
⑪：Power switch DIP EDID Switch Description： DIP 1 2 3 4
     X 0 0 0 : copy output1 EDID only
     X 0 0 1 : EDID MIX
     X 0 1 0 : 4Kx2K (YUV420)
     X 1 0 0 : 4K 30Hz 5.1ch
     X 0 1 1 : 4KX2K 30Hz
     X 1 0 1 : 1080P 3D 2ch
     X 1 1 0 : 1080P 2D 2ch
     X 1 1 1 : 1080P 2D 5.1ch
1 is used for upgrades, 1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)

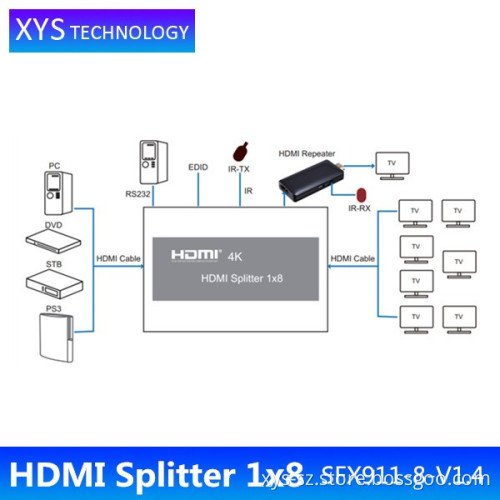

Working Mode Description： There are two working mode for product, normal working mode and upgrading mode, which is decided by DIP EDID switch 1, 1 is upgrading mode，0 is normal working mode. IR Extension description: There is an IR TX Extension port, it can work with an optional HDMI repeater which works as IR-RX and IR extended via HDMI cable Output port: Only output1 can support CEC function, output 2~8 support IR extension function. Connecting operation 1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the displays with 8 hdmi cables
3: connect 5V/2A power adapter to the splitter
4. Reset button: it’s a Reset key for system Reset. Packing Details Package List 1. HDMI splitter x1pc
2. Power adapter x1pc
3. User manual x1pc
4. IR cable x1pair
5. HDMI repeater (optional)
