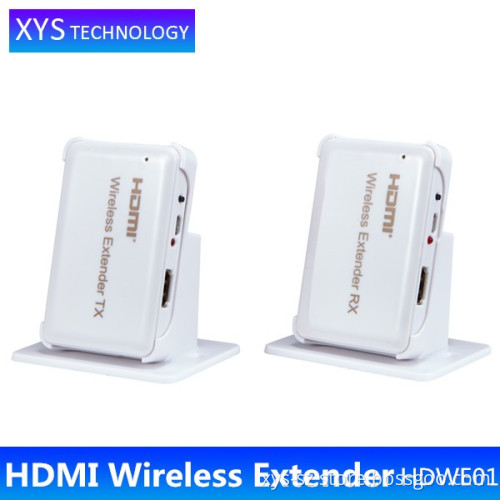

Alibaba 30M Wireless HDMI extender/

Our Service 1.Only foucs on Medium High End Products
2.support OEM&ODM order
3.support SILK PRINT LOGO on products
4.support CUSTOMIZED PACKAGE Detailed Images 1x16 HDMI Splitter This HDMI Wireless extender uses Wireless HD technology which enables high-speed, high performance wireless communication among consumer electronics,computer and mobile devices. Working in the uncrowded 60 GHz frequency band,it is not subject to interference by WiFi signals,microwave radiation, or cordless phone. It combines high bandwidth capacity to robust error-correction,to deliver uncompressed HD video, multi-channel surround sound. It supports the highest resolution up to 1080p@60Hz,and the transmitting distance of wireless can be up to 30m. Features Support HDMI 1.4a version
Support 3D video format
     Support HDCP1.4
Support the highest resolution up to 1920x1080/60Hz
Support the highest rate 1.485G and TMDS clock up to 148.5Mhz
Support uncompressed transmission
Working in the 60 GHz frequency band, it is not subject to interference by WiFi signals, microwave radiation, or cordless phones
The longest distance can be 30m when the resolution is 1080p
5V/1A power adaptor
Specifications: HDMI version ……………………………………………………..…....…………….. HDMI 1.4a
HDMI resolution ……………………………….. ……….. ………....... …up to 1920x1080/60Hz
Support audio format………………..….…….….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………..………………………………….148.5MHz
Max baud rate……………….…….…….…..………….....………………………………..1.485Gbps
Input cable distance.……………….....….(1080p resolution) ≤8m AWG26 HDMI standard cable
Output cable distance………………….…(1080p resolution) ≤8m AWG26 HDMI standard cable
Max working current…………………………………………………...…………………….....650m A
Power adapter format………………..….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1A
Operating Temperature range……………...……………..…………….……………(-15℃ to +55℃)
Dimension (L x W x H)………………...................…………………………......…….85x55x12 (mm)
Weight…….…..…………………………………….....…………………..…….……………………80g Product pictures

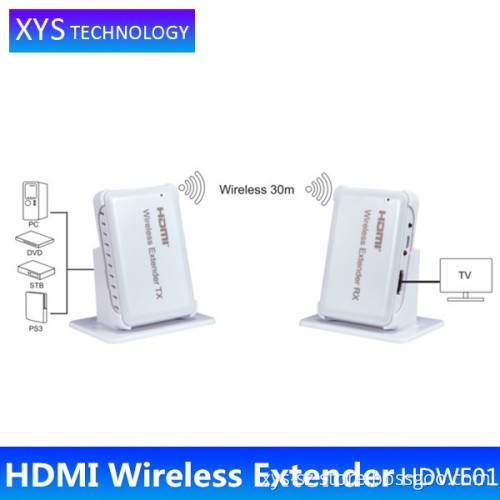

Product interface picture: Connecting operation 1: Connect the HD source to the input of the wireless extender TX with 1 hdmi cable
2: Connect the output of the wireless extender RX to the displays with 1 hdmi cable
3: Connect 5V/1A power adapter to the TX and RX.
4. Reset button: it’s a reset key for system reset，you can press the button for about 10 seconds to restore factory Settings Note: 1.It works in the uncongested 60 GHz frequency band, pls don’t put obstacles between the TX and RX to give play to the best performance.
2.TX and RX should be matched to use, when you make the TX and RX to restore factory setting, it will complete matching automatically. Packing Details Package List 1. HDMI Transmitter & HDMI Receiver
2. Power adapter
3. User manual
Related Products Payment & Delivery Payment Options: 1.Bank to Bank(T/T)
2.Alibaba T/T
3.Alipay
4.Western Union
5.MoneyGram
6.Paypal Lead Time: 1.Sample is usually within 3days.
2.Wholesales Orders:3-7days according various quantities
3.OEM10-15days after receiving your sample confirmation and payment. Shippng Ways: 1.We could use customers' express account to ship goods.
2.We could send goods to customers' agent.
3.Shipping ways:
a.Express:DHL,TNT,FEDEX,UPS,EMS etc.
b.Sea
c.Air

Shipping Way	Shipping Time	Advantages&Disadvantages
DHL/UPS/FEDEX/TNT	3-5 Days	ast, a little expensive
Air Shipping 5-8	5-8 Days	Fast, FOB Terms, customers must clear the custom by themselves
Sea Shipping	20-30 Days	Cheap, slow, FOB Terms, customers must clear the custom by themselves

Our Company XYS TECHNOLOGY CO., LTD is one specialized is engaged in the production of computer peripheral cables & adaptors production enterprises .Our company is very outstanding with research and development ,design, production and sales, services.
And we have several years OEM experience so we support OEM&ODM order and customized spec products&package. Certifications FAQ If you have any question,pls never hesitate to contact us!
We will reply you within 24hours.
