Support IOS/Android WIFI display, support 1080p HDMI Miracast/

Our Service 1.Only foucs on Medium High End Products
2.support OEM&ODM order
3.support SILK PRINT LOGO on products

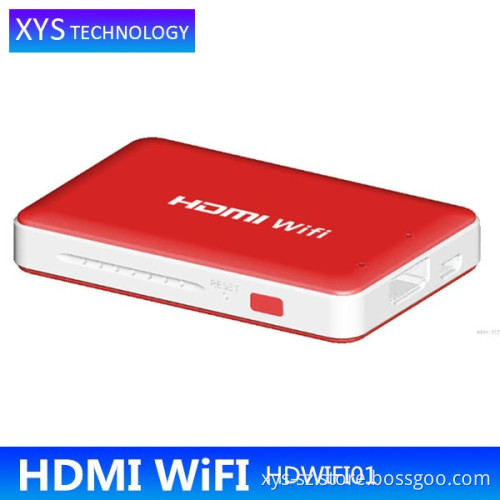

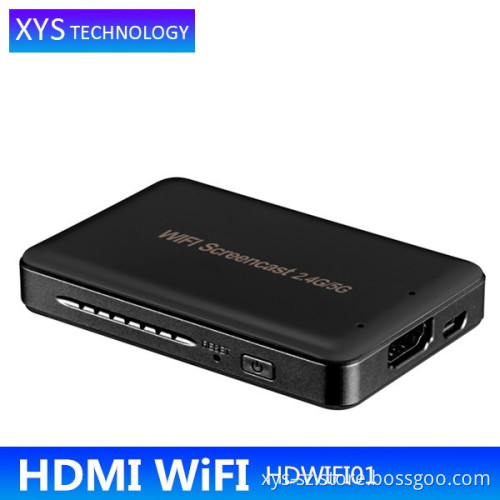

4.support CUSTOMIZED PACKAGE Detailed Images INTRODUCTION This HDMI Miracast is a high-definition signal receiver which supports WIFI display. It can support kinds of wireless transmission protocol, including DLNA, airplay, miracast and airFun. After connecting HDMI Miracast with tablet, notebook, mobile phone and other portable devices, the video from the portable devices can be transferred to HDTV or projector.
This HDMI Miracast can adapt to the TV output automatically. It can support the resolution up to 1080P/60Hz, including 480P/480I/576P/720P/1080I. Features Support IOS and Android system WIFI display
● Support HDMI 1.3
● Support resolution 480P/480I/576P/720P/1080I/1080P
● Support WIFI 2.4G/3G/4G/5G, support 2.4G and 5G dual band antenna
● Support charging by mini USB
● Support switch button to control ON and OFF, support restore factory setting
● Support one source to one sink WIFI display
Specifications: HDMI resolution……………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video format …………………………..…………. …........................................8bit
Support audio format………………….………………………………………………..LPCM
Max baud rate…….…………….…….……………………………………. ……….1.5Gbps
Input and output TMDS signal…….………………….……..…………… 0.5~1.5Volts p-p
Input and output DDC signal ……………………………………..……….. 5Volts p-p (TTL)
Output cable distance…………………….….............≤15m AWG26 HDMI standard cable
Max working current……………………………………………………………………...0.5A
Power adapter format……………Input:AC(50Hz, 60Hz) 100V-240V; Output:DC5V/1A
Operating Temperature range……..…………….……….………………… ..(-15 to +55℃)
Operating humidity range…………….….…………….….5 to 90%RH (No Condensation)
Dimension (L x W x H)……………………….………………….……………84x50x10 (mm)
Weight…..………………..……………………………………………………….………….50g Physical interface diagram ①: HDMI output port
②: Mini USB port for charging
③: Power indicator light
④: HDMI output indicator light
⑤: Switch button
⑥: Reset button
⑦: Heat dissipation hole Connecting operation 1、Connect the 5V power supply with HDMI Miracast
2、Connect HDMI Miracast output to the TV display with HDMI cable
3、Users can switch the HDMI Miracast ON and OFF by pressing the switch button on the side
4、Connect the signal source with HDMI Miracast through WIFI Notes: Please use correctly and maintenance properly, to ensure product performance and work properly
1.Should Stay away from damp, high temperature, dusty, corrosion and oxidation gas environment in order to avoid damage
2.All parts should avoid strong vibration, no collision tapping and drop fall, to avoid damage.
3.Do not touch the unit power adapter plugs with wet hand
4.Unplug the adapter plug from the power socket, please hold the plug, don't pull the power cord
5.Please turn off the power supply when not use the machine.(unplug the power adapter plug when not use for a long time)
6.Please do not open the machine cover, do not touch any device in the machine.
7.Please use the power adapter provided or approved by the manufacturer Packing Details Package List 1. HDMI Miracast x1pc
2. 5V/1A DC Power adapter x1pc
3. User Manual x1pc
Related Products Payment & Delivery Payment Options: 1.Bank to Bank(T/T)
2.Alibaba T/T
3.Alipay
4.Western Union
5.MoneyGram
6.Paypal Lead Time: 1.Sample is usually within 3days.
2.Wholesales Orders:3-7days according various quantities
3.OEM10-15days after receiving your sample confirmation and payment. Shippng Ways: 1.We could use customers' express account to ship goods.
2.We could send goods to customers' agent.
3.Shipping ways:
a.Express:DHL,TNT,FEDEX,UPS,EMS etc.
b.Sea
c.Air

Shipping Way	Shipping Time	Advantages&Disadvantages
DHL/UPS/FEDEX/TNT	3-5 Days	ast, a little expensive
Air Shipping 5-8	5-8 Days	Fast, FOB Terms, customers must clear the custom by themselves
Sea Shipping	20-30 Days	Cheap, slow, FOB Terms, customers must clear the custom by themselves

Our Company XYS TECHNOLOGY CO., LTD is one specialized is engaged in the production of computer peripheral cables & adaptors production enterprises .Our company is very outstanding with research and development ,design, production and sales, services.
And we have several years OEM experience so we support OEM&ODM order and customized spec products&package. Certifications FAQ If you have any question,pls never hesitate to contact us!
We will reply you within 24hours.
