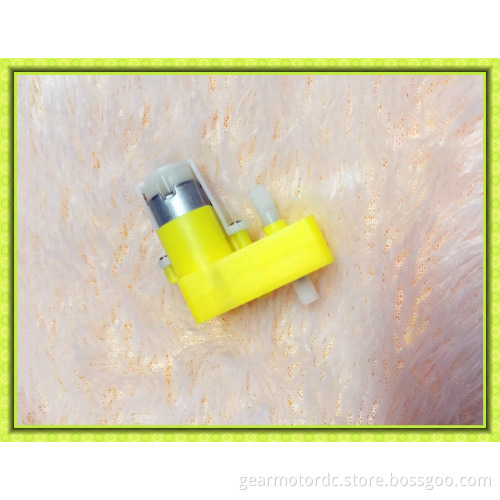

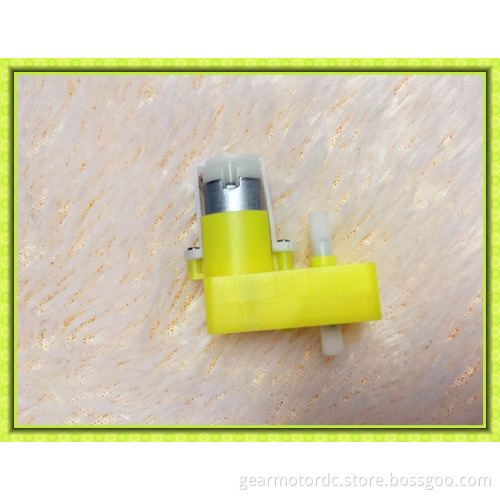

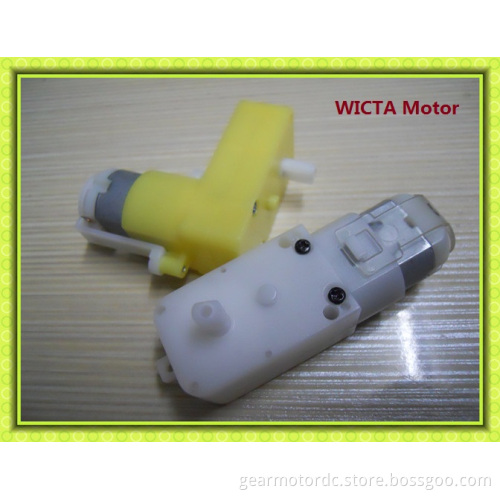

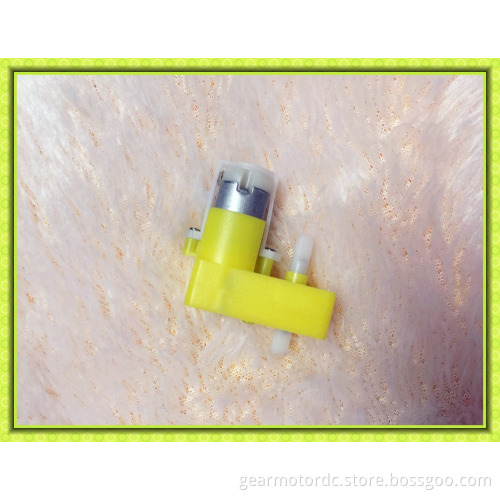

3volt robot and Display cabinets dual shaft small plastic gear motor

3volt robot and Display cabinets dual shaft small plastic gear motor   Plasstic dc gear motor   dc motor dimension and specification

Model	Voltage		No Load		On Load					Stall
	Working Voltage	Rated Voltage	Speed	Current	Speed	Current	Torque		Power	Torque		Current
		V	rpm	A	rpm	A	N.m	Kg.cm	W	N.m	Kg.cm	A
JS01-48	3.0-6.0	3.0	105	0.12	80	0.20	0.024	0.25	0.14	0.035	0.36	0.45
JS01-120	3.0-6.0	4.5	41	0.20	30	0.50	0.049	0.50	0.21	0.14	1.4	1.25
JS01-220	3.0-6.0	4.5	22	0.25	16	0.60	0.07	0.85	0.25	0.24	2.4	1.1
JS01-288	3.0-12.0	6	17	0.10	11	0.17	0.05	0.95	0.28	0.25	2.5	0.6



JS02-48	3.0-6.0	3.0	105	0.12	80	0.20	0.024	0.25	0.14	0.035	0.36	0.45
JS02-120	3.0-6.0	4.5	41	0.20	30	0.50	0.049	0.50	0.21	0.14	1.4	1.25
JS02-220	3.0-6.0	4.5	22	0.25	16	0.60	0.07	0.85	0.25	0.24	2.4	1.1
JS02-288	3.0-12.0	6	17	0.10	11	0.17	0.05	0.95	0.28	0.25	2.5	0.6

  All wicta motor should be testing before shipping   CE& RoHS Certificate Wicta gear motor workshop Shipping method for gear motor   Company information and service   We Wicta Motor can make dc motor, dc gear motor,   Gear motor include: 12v dc gear motor,24 volt dc gear motor,   We use high speed dc motor equipped with high reduction ratio to get low rpm and high torque, these products are widely used in automation industries.   At the same time, we also supply, brushless motor, planetary gear motor, ac synchronous motor, etc.   we have over 100 series and thousands of dc motors and gear motors for your choice.     If have any questions or problems about motors, we welcome contact us or look through our web. www.gearmotordc.com
