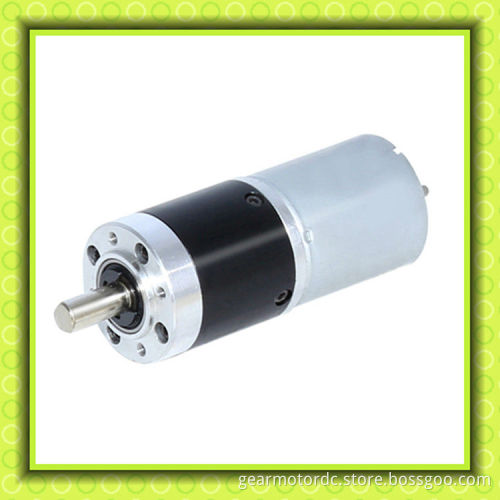

low noise Low RPM Small Electric DC planetary gear motor 12v high torque

low noise Low RPM Small Electric DC planetary gear motor 12v high torque   gear motor planetary gearbox data sheet

Reduction ratio	6	10	20	30	60	90	120	180	270	489	540
Gearbox L mm	23.5	23.5	23.5	23.5	26	26	28	28	28	30	30
No load speed rpm	1000	600	300	200	100	66	50	33	22	12	11
Rated speed rpm	750	450	225	150	75	50	35	25	15	9	7
rated torque kg.cm	1.5	2.4	4.3	6.5	11.7	17.5	20	20	20	20	20
Max Torque kg.cm	8	8	8	8	30	30	30	30	30	30	30

    low voltage dc motor and gear motor Typical Applicatons:     1. Bank System: ATM,   2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine   3. Security: Door Lock, Safebox,   4.  Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer ...   5. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment...   6.Robot and Robot Arm   7. Home Appliance: Kitchen Appliance, TV Lift,  Auto Cleaner, Auto Toilet Lid...   8. Office Products: Printer, Paper Shredder, Label Machine,   Others,such as bake machine, package machine, warm-light, horse feeders, electric valve.....   Packaging & Shipping        Other Gear Motor Reference Photoes:     Company Information   Shenzhen Wicta Industry Co. Ltd was established in 2012. Our products have been widely used in USA, Germany, Italy, and other Southeast Asia and Middle East Africa and other countries and regions.   Extra quality the our best way to show sincerest respect to our customers. We have got CE, RoHS and other certification.   Wicta gear motors main products are dc motor, dc gear motor, Micro dc gear motor, spur gear motor.   Gear motor include: 12v dc gear motor,24 volt dc gear motor or according customer required the motor diameter range form8mm-50mm.   We use high speed dc motor equipped with high reduction ratio to get low rpm and high torque, these products are widely used in automation industries.   At the same time, we also supply, brushless motor, planetary gear motor, ac synchronous motor, etc. We have over 100 series and thousands of dc motors and gear motors for your choice        Our Services   we make and supply diameter rang 12-50mm dc gear motor, 3v 6v 9v 12v 24v, torque 0.1-600kg.cm, output speed rpm from 0.5-2000rpm   Typical Applicatons:     1. Bank System: ATM,   2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine   3. Security: Door Lock, Safebox,   4.  Sanitary Applications: Towel spray dispenser, soap dispenser, air freshener dispenser, hand dryer ...   5. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment...   6.Robot and Robot Arm   7. Home Appliance: Kitchen Appliance, TV Lift,  Auto Cleaner, Auto Toilet Lid...   8. Office Products: Printer, Paper Shredder, Label Machine,   Others,such as bake machine, package machine, warm-light, horse feeders, electric valve.....      CE and Rohs Certification:      FAQ   Q: You are a agent or have your own factory? A: Yes we have factory. welcome to visit.   Q: If your dc motor/gear mtor can be customized? A: YES. such as the output shaft,output speed,torque,shape related spares etc.special requirements can be customized as your design.   Q: Before I place sample order, what should I offer? A: Your requirements of Voltage, Rated speed and Rated torque, setup dimension limitation etc. these are basic inforamtion.   Q: What's payment terms you can accept? A: Paypal, T/T. small order 100%,larger order deposit 50%, banlance paid before the shipment.   Q:Do you have any stock motors? A:NO, as all our motors are made according to costomers' requirements   Q: What is shipping method? A: For samples, generally we use the express, like the DHL, FedEx, UPS. We also can get a favorable discount from our forwarder. For big cargos, it is ok to ship via sea or air, generally we accept FOB, CIF...
  any other question please contact us freely
