high torque Metal gearbox with reduction 200rpm 6v dc micro gear motor

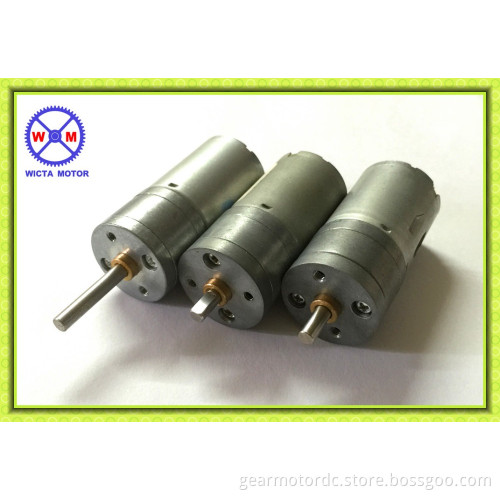

high torque Metal gearbox with reduction 200rpm 6v dc micro gear motor  Product Description 1. Dc micro gear reductor related picture   2.Micro dc gear motor dimension   3.Gear Motor Data sheet

Serial Number	0610	0613	0625	0650	06100	06125	06156	06250	06390	06488
Gearbox L mm	16.2	16.2	16.2	17.5	19.2	19.2	19.2	20.5	20.5	20.5
No load speed rpm	600	480	240	120	60	48	38	24	15	12
Rated speed rpm	480	385	180	90	45	36	28	18	10	8
rated torque kg.cm	0.1	0.14	0.26	0.47	0.95	1.06	1.32	1.92	2.7	3.4
Max Torque kg.cm	3	3	3	3	3	5	5	7	7	7

Other types of dc gear motor, please contact us. Tell us your request, we will do the full evaluation and best recommendation for you   4.Gear motor CE & RoHS Certificate Our Services   1.The Voltage can be 3V, 6V, 9V, 12V, 24V or other cusomized.     2. Shaft dimension, reduction ratio or other special request all can be discussible.   3.All export products (dc gear motor)will be tested by QC strictly
FAQ  Q: You are a agent or have your own factory? A: Yes we have factory. welcome to visit. Q: If your dc motor/gear mtor can be customized? A: YES. such as the output shaft,output speed,torque,shape related spares etc.special requirements can be customized as your design. Q: Before I place sample order, what should I offer? A: Your requirements of Voltage, Rated speed and Rated torque, setup dimension limitation etc. these are basic inforamtion. Q: What's payment terms you can accept? A: Paypal, T/T. small order 100%,larger order deposit 50%, banlance paid before the shipment. Q:Do you have any stock motors? A:NO, as all our motors are made according to costomers' requirements Q: What is shipping method? A: For samples, generally we use the express, like the DHL, FedEx, UPS. We also can get a favorable discount from our forwarder. For big cargos, it is ok to ship via sea or air, generally we accept FOB, CIF. Company Information 1. Wicta Motor Shenzhen Wicta Industry Co. Ltd was established in 2012. Our products have been widely used in USA, Germany, Italy, and other Southeast Asia and Middle East Africa and other countries and regions.   Extra quality the our best way to show sincerest respect to our customers. We have got CE, RoHS and other certification.   Wicta gear motors main products are dc motor, dc gear motor, Micro dc gear motor, spur gear motor.   Gear motor include: 12v dc gear motor,24 volt dc gear motor or according customer required the motor diameter range form8mm-50mm.   We use high speed dc motor equipped with high reduction ratio to get low rpm and high torque, these products are widely used in automation industries.   At the same time, we also supply, brushless motor, planetary gear motor, ac synchronous motor, etc. We have over 100 series and thousands of dc motors and gear motors for your choice.       2. Application:  1. Bank System: ATM, currency count machine, coin sorting machine, counting machine.   2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine.  3.Office Products: Printer, Paper Shredder, Label Machine.  4.Bake machine for BBQ, package machine, warm-light, horse feeders, electric valve.  5.Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer.  6. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment.  7.Robot and Robot Arm, Small Robot Part.  8.Home Appliance: Kitchen Appliance, TV Lift,  Auto Cleaner, Auto Toilet Lid.  9. Security: Door Lock, Safebox.   3.Trade info Trade Terms: FOB, CIF, EXW; Payment Terms: T/T, Western Union, PayPal; Payment Condition: 100% product payments Delivery Time:7-20 working days after received the payments; Packing: Standard export carton,  Shipping: By sea, by air and by express delivery.   4.Export processing      5.After-Seles Services Terrific after-sales service:24 hours around the clock & 12 months Warranty; Life-long maintenance service for the product.   6. Contact info The customized service we provide has helped our worldwide customers solve lots of problems. You can find more information of us at :  Shenzhen Wicta Industry Co., Ltd  Add: No.9 Caizi North Rd. Shangmugu Pinghu 518111 Shenzhen China  Tel:  0086-755-29369246  Phone:  0086-138 4917 5677  skype: live:sesgaaruk  Email: wicta1@hotmail.com   Web: www.gearmotordc.com
