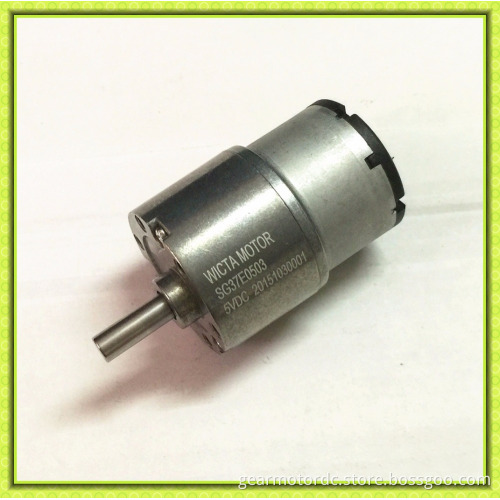

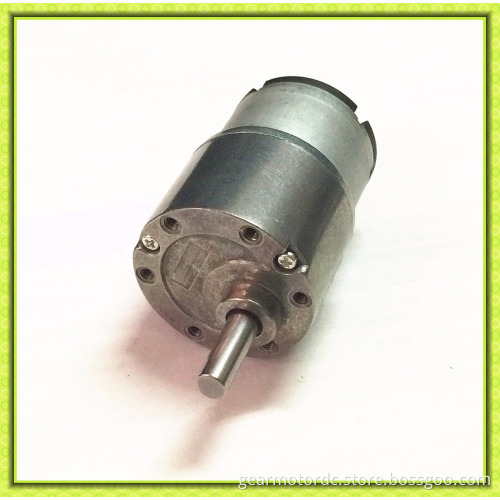

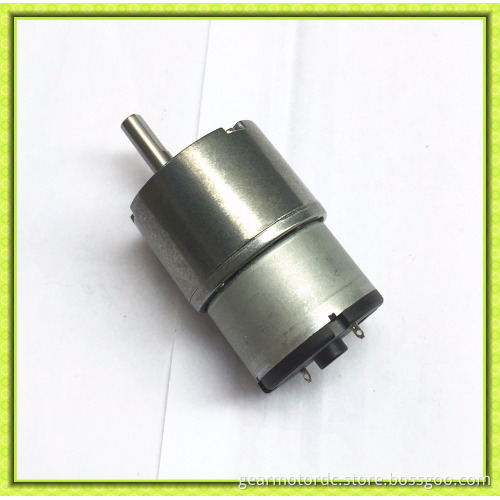

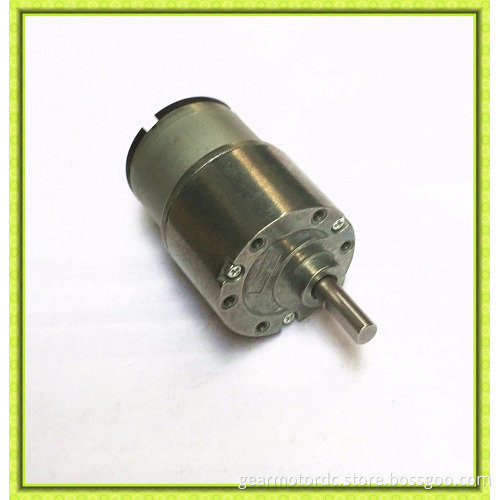

Metal gearbox 37mm diameter small geared motor dc 24v for Automatic paper dispenser

Product Description Metal gearbox 37mm diameter small geared motor dc 24v for Automatic paper dispenser
1.SG37-A 2. Voltage: 3-24V 3. Speed:  1-1000RPM 4. Torque: 0.1-15kg.cm Precise metal gear motor dimension drawing for wicta SG37-A

Serial Number	6010	6020	6030	6050	6070	6090	60120	60150	60210
Gearbox L mm	22.5	22.5	22.5	22.5	22.5	22.5	27.5	27.5	27.5
No load speed rpm	600	300	200	120	85	66	50	40	28
Rated speed rpm	450	225	150	90	63	45	35	30	20
Rated torque kg.cm	0.28	0.51	0.77	1.25	1.79	2.05	2.45	3.42	4.78
Max Torque kg.cm	2	4	4	8	8	8	10	10	15

Products Show Main products range:
We mainly provide dc gear motors (dc motor+gearbox), gearbox diameter range from 12mm-52mm.

And dc motor diameter range from 10mm to 52mm.dc motor include metal/carbon brush motor,brushless motor,input speed range from 1500rpm to 20000rpm,gear motors include metal spur gear motors,small worm gear motors, shaded pole AC gear motor, synchronous motor and planetary gear motors.

The gear motor output speed range from 0.1rpm to 2000rpm, torque range from 0.01kg.cm to 600kg.cm,working voltage range 1.5v 3v 4.5v 5v 6v 7.2v 12v 24v. .

Up to now,We have over 100 series and thousands of dc motors and gear motors to meet customers’ requirements.
Our Service
1.The Voltage can be 3V, 6V, 9V, 12V, 24V or other cusomized.

2. Shaft dimension, reduction ratio or other special request all can be discussible.


3.All export products should be tested by QC strictly before packing and shipping

Our Company Factory Our Factory Workshop Our Workshop Packing & Delivery 1.Trade info
Trade Terms: FOB, CIF, EXW;
Payment Terms: T/T, Western Union, PayPal;
Payment Condition: 100% product payments
Delivery Time:7-20 working days after received the payments;
Packing: Standard export carton,
Shipping: By sea, by air and by express delivery.
2. Export processing
3. Shipping methods
4.After-Seles Services Terrific after-sales service:24 hours around the clock & 12 months Warranty;
Life-long maintenance service for the product.
Our Certifications Precise metal gear motor CE & RoHS Certificate Wicta Motor was established in 2008, located in Shenzhen city southeastern coat of China. We are professional manufacturer specializes in micro dc gear motors. e have passed the “ISO9001:2008 Quality Management System” and products got CE and RoHs certifications.
FAQ Q: What kind of motors you can provide? A:we mainly provide dc gear motors , gearbox diameter range from 12mm-52mm. Include round spur dc gear motor,flat dc gear motor,dc worm gear motor, planetary dc gear motor, brushless dc gear motor, shaded pole gear motor etc. The gear motor output speed range from 0.1rpm to 2000rpm, torque range from 0.01kg.cm to 600kg.cm,output power 0.1-50W. Q: If your dc motor/gear motor can be customized? A: Yes, gear motor, dc motor.gearbox,output shaft etc.can be customized. We can modify the motor's working voltage,rated speed, gear ratio, torque etc, and gearbox's shaft dimension and shape can be modified too. We are pleased to make those modifications, and we have enough experience on these. Q: Before I place sample order, what should I offer? A: Normally we need to know the Nominal Voltage, No-load Speed, On-load Speed,On-load Torque, rotation direction, Shaft diameter and Length Use conditions(duty cycles and load status),or any issues of the motors you ever tested before. If there is other special requirement, please let us know in advance,such as working current limits,EMC limits,noise lifetime and shaft process(D-shape, multy-knurls,mounting holes etc). Q: Can I get some samples? And delivery time? A:Sure, Please note all our dc or gear motors samples are charged, all our motors are made according to different requirements and price will be higher than bulk orders, no stocks, generally speaking,delivery time will be 5-10 working days, if customized types the time will be around 20 working days
Q: What's payment terms you can accept? A: for sample order, we accept Paypal,Western Union and T/T. large orders by TT
Q: What is shipping method? A: For samples, generally we use the express, like DHL, FedEx, UPS,TNT etc. For big cargos, it is ok to ship via sea or air cargo, generally we accept EX-WORK FOB, CIF.
Q: Is there a MOQ for your dc/gear motors? A: Yes. The MOQ is between 200~10,000pcs for different models after motor sample approval.
Q: What is the delivery time for large orders? A.Normal status,delivery time is 25-35 working days, for special customized requirements,we need to confirm further..
Q: Is it possible to visit your factory?
A:Sure.you are welcome, please kindly keep us informed a few days in advance. We need to check our schedule to see if we are available then.
Products application 1. Bank System: ATM machine,currency count machine, coin sorting machine, money counting machine. money detector, coin refund devices.
2. Food Vending Machine: Beverage Vending Machine, Coffee Vending Machine, food processors etc.
3.Office Products: Printer, Paper Shredder, Label printer etc.
4.Bake machine for BBQ, package machine, warm-light, animal feeders, electric valve.
5.Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer, floor cleaner, tissue dispenser.
6. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment.
7.Robot Industry: Robot and Robot Arm, Small Robot Parts
8.Home Appliance: Kitchen Appliance, TV Lift, Auto Cleaner, Auto Toilet Lid, grill,oven, fireplace, vacuum cleaners, Electric curtains, soybean milk machine.
9. Security system: Door Lock, Safebox. Smart locks, parking lock, Bus coin box, furniture safebox, Gun safe, gate/door/sense lock, warning lights, anti-theft electronic locks, and sirens/alarms etc.
10. Various machines: wrapping machines, stage revolving machines, electric pumping machines, rewinding machines etc.
