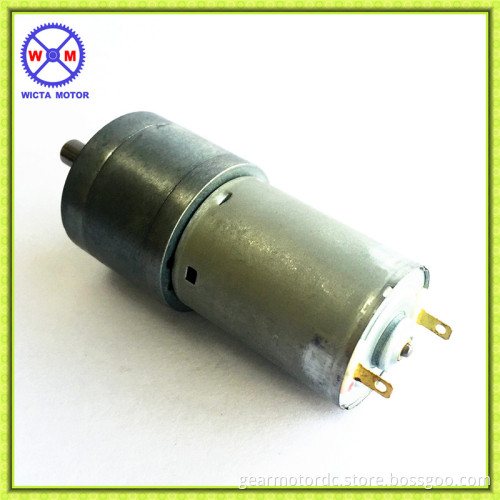

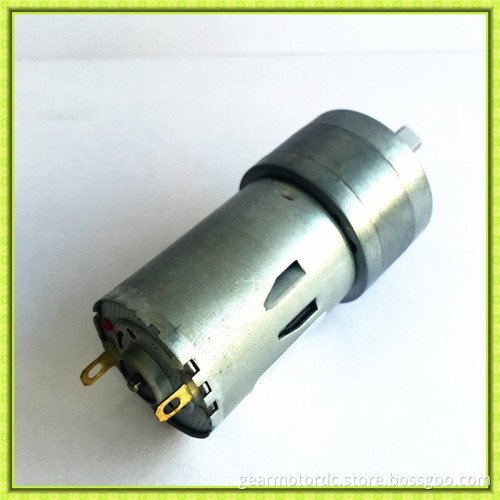

Reversible 32mm gearbox SG32 high torque micro DC 12 volt geared motor

Product Description Reversible 32mm gearbox SG32 high torque micro DC 12 volt geared motor     1.DC 12 volt geared motor data sheet   SG32-A

Serial Number		6013	6040		6045	6052		6073		6094	60121		60136		60155
Gearbox L mm		21	23		23	23		23		23	26.5		26.5		26.5
No load speed rpm		461	150		133	115		82		64	49		44		38
Rated speed rpm		369	112		100	86		62		47	36		32		28
rated torque kg.cm		0.85	2.4		2.7	3.12		3.47		5.26	6.29		7.1		8.1
Max Torque kg.cm		2	4		4	6		6		10	10		10		15
Serial Number	60170			60219			60282		60362			60409		60466
Gearbox L mm	26.5			26.5			26.5		26.5			26.5		26.5
No load speed rpm	35			27			21		16			14		13
Rated speed rpm	25			19			15		12			11		10
rated torque kg.cm	8.85			10*			10*		10*			10*		10*
Max Torque kg.cm	15			20			20		20			20		20

  2. Precise DC 12 volt geared motor dimension drawing for SG32-A Products Show Reversible 32mm gearbox SG32 high torque micro DC 12 volt geared motor      Main products range: Our mainly provide dc gear motors (dc motor+gearbox), gearbox diameter range from 12mm-52mm. and dc motor diameter range from 10mm to 52mm. dc motor include metal/carbon brush motor,brushless motor, input speed range from 1500rpm to 20000rpm, gear motors include metal spur gear motors, small worm gear motors, shaded pole AC gear motor, synchronous motor and planetary gear motors. The gear motor output speed range from 0.1rpm to 2000rpm, torque range from 0.01kg.cm to 600kg.cm, working voltage range 1.5v 3v 4.5v 5v 6v 7.2v 12v 24v . Up to now,We have over 100 series and thousands of dc motors and gear motors to meet customers’ requirements. Other dc motor with ROUND GEARBOX, Please check here! Other dc motor with FLAT GEARBOX,  Please check here! Other dc motor with WORM GEARBOX,  Please check here! Other dc motor with PLANETARY GEARBOX,  Please check here! Company Information 1. About us Wicta Motor was established in 2008, located in Shenzhen city southeastern coat of China. We are professional manufacturer specializes in micro dc gear motors. We have passed the “ISO9001:2008 Quality Management System” and products got CE and RoHs certifications.
                   Factory                                           Office                                     warehouse                                whokshop Our Services a. With these years' research, development and manufacture, we have accumulated our special experience and methods to control the quality through the whole process.

b. With the extensive experience in all types of motors and can specialize in large torque, low noise long lifespan motors in physically small sizes.
c. We have a strong team of engineers and staff to achieve your satisfaction even with tight time and cost constraints.
d. From designing, procurement, manufacturing, inspection, packaging and shipping, in each and every production process we follow the standard operational procedures strictly. e. After-Seles Services Terrific after-sales service:24 hours around the clock & 12 months Warranty; Life-long maintenance service for the product. Our Certifications Precise metal gear motor CE & RoHS Certificate for Reversible 32mm gearbox SG32 high torque micro DC 12 volt geared motor

Packaging & Shipping 1.Trade info Trade Terms: FOB, CIF, EXW; Payment Terms: T/T, Western Union, PayPal; Payment Condition: 100% product payments Delivery Time:7-20 working days after received the payments; Packing: Standard export carton,  Shipping: By sea, by air and by express delivery.   2. Export processing & shipping methods
Products application 1. Bank System: ATM machine,currency count machine, coin sorting machine, money counting machine. 2. Food Vending Machine: Beverage Vending Machine, Coffee Vending Machine, food processors etc. 3.Office Products: Printer, Paper Shredder, Label printer etc. 4.Bake machine for BBQ, package machine, warm-light, animal feeders, electric valve. 5.Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer. 6. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment. 7.Robot Industry: Robot and Robot Arm, Small Robot Parts 8.Home Appliance: Kitchen Appliance, TV Lift,  Auto Cleaner, Auto Toilet Lid, grill,oven, fireplace. 9. Security system: Door Lock, Safebox. Smart locks, parking lock, Bus coin box, furniture safebox. 10. Various machines: wrapping machines, stage revolving machines, electric pumping machines.
FAQ Q: What kind of motors you can provide? A:we mainly provide dc gear motors,dc worm gear motor, planetary dc gear motor. etc.   Q: If your dc motor/gear motor can be customized? A: Yes, gear motor, dc motor.gearbox,output shaft etc.can be customized.    Q: Before I place sample order, what should I offer? A: Normally we need to know the Nominal Voltage, No-load Speed, On-load Speed,On-load Torque, rotation direction, Shaft diameter and Length Use conditons(duty cycles and load status),or any issues of the motors you ever tested before.   Q: Can I get some samples? And delivery time? A: Sure,generally speaking,delivery time will be 5-10 working days, if customized types the time will be around 20 working days   Q: What's payment terms you can accept? A: for sample order, we accept Paypal,Western Union and T/T. large orders by TT    Q: What is shipping method? A: For samples, generally we use the express, like DHL, FedEx, UPS,TNT etc. For big cargos, it is ok to ship via sea or air cargo, generally we accept EX-WORK FOB, CIF.   Q: Is there a MOQ for your dc/gear motors?  A: Yes. The MOQ is between 200~10,000pcs for different models after motor sample approval.    Q: What is the delivery time for large orders? A.Normal status,delivery time is 25-35 working days, for special customized requirements,we need to confirm further..   Q: Is it possible to visit your factory?   A:Sure.you are welcome, please kindly keep us informed a few days in advance. We need to check our schedule to see if we are available then.     The customized service we provide has helped our worldwide customers solve lots of problems. You can find more information of us at : ShenZhen Wicta Industry Co. Limited. No.251 Ping'An Blvd Fumin Industry Zone Pinghu 518111 Shenzhen China Tel:  0086-755-29369246 Phone:  0086-138 4917 5677 skype: witca518 Web: www.gearmotordc.com
