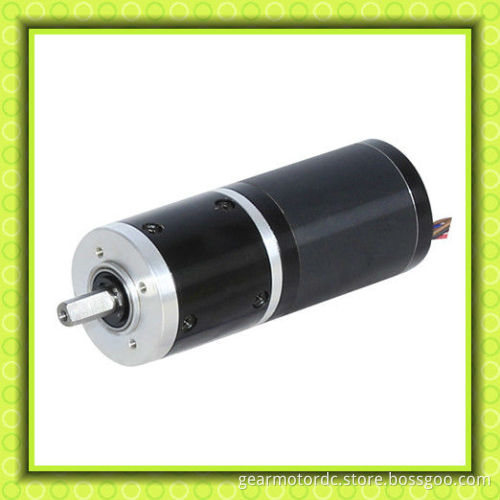

12v 24v high torque brushless dc motor with planetary gearbox
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
40BL50K42ZWN60-2430 data sheetReduction ratio | 3.8 | 4.9 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 | 271 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
Length (L) mm | 35.0 | 35.0 | 45.4 | 45.4 | 45.4 | 55.6 | 55.6 | 55.6 | 55.6 | 65.8 | 65.8 |
No-load Speed r/min | 785 | 615 | 200 | 158 | 125 | 54 | 42 | 33 | 26 | 14 | 11 |
Rated speed r/min | 550 | 430 | 140 | 111 | 88 | 38 | 30 | 23 | 20 | 12 | 10 |
Rated torque N.m | 0.21 | 0.26 | 0.73 | 0.92 | 1.2 | 2.5 | 3.1 | 4 | 4 | 5 | 5 |
Max Torque N.m | 1.5 | 1.5 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 15 | 15 |
