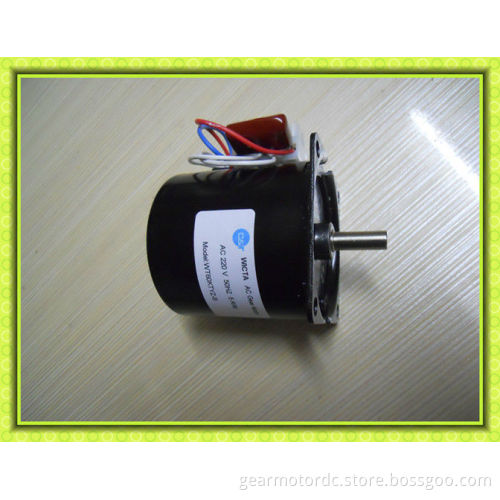

high torque low rpm model 50ktyz 60ktyz ac synchronous gear motor

Specifications 1.Voltage:AC220-240V Freq:50/60HZ

2.Output power:6W-14W

3.Speed:1-120rpm

4. Motor Type: Grill Motor, Oven

ac synchronous gear motor 50KTYZ 60KTYZ   applications:   Widely applied on gluestations, mood monitors, mahjong machines, eletric screen, electric oven Electric equipment, Damper, Valve HVAC system,CATV-system, Blending machine     data sheet

Technical parameters of ac synchronous gear motor									Model: WT60KTYZ
Voltage(V)	Input power(W)			Input current(mA)			Starting voltage(V)				Temperature rise(K)			Noise level(Db)			Rotation direction			Dimension D*H (mm)
100-120	≤14			≤110			(100-120) ±15%				≤60			≤45			CW/CCW			60*60
220-240	≤14			≤55			(220-240) ±15%				≤60			≤45			CW/CCW			60*60
Torque and speed of ac synchronous gear motor(220V version as sample,110V’s is similar)
Rated speed(rpm)		2	3		5	10	15	20		25		30	40		50	60		80	100		120
rated torque(kg.cm)		50	45		30	24	16	12		10		8	6		4.5	4		3	2.5		2
