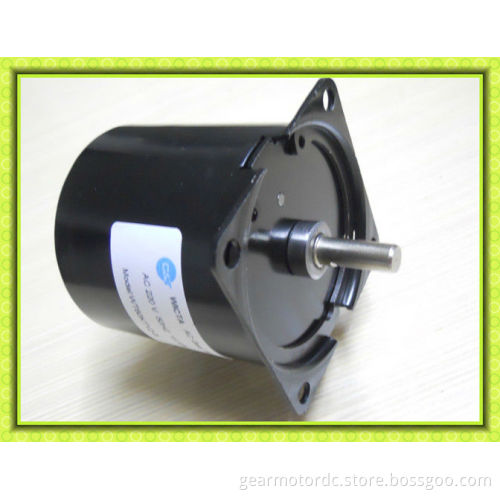

110v 220v ac reversible synchronous gear motor
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Technical parameters of ac synchronous gear motor | Model: WT50KTYZ | |||||||||||||||||||||||
Voltage(V) | Input power(W) | Input current(mA) | Starting voltage(V) | Temperature rise(K) | Noise level(Db) | Rotation direction | Dimension D*H (mm) | |||||||||||||||||
100-120 | ≤7 | ≤70 | (100-120) ±15% | ≤60 | ≤45 | CW/CCW | 58*38 | |||||||||||||||||
220-240 | ≤7 | ≤35 | (220-240) ±15% | ≤60 | ≤45 | CW/CCW | 58*38 | |||||||||||||||||
Torque and speed of ac synchronous gear motor(220V version as sample,110V’s is similar) | ||||||||||||||||||||||||
Rated speed(rpm) | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 120 | ||||||||
rated torque(kg.cm) | 30 | 25 | 20 | 15 | 10 | 8 | 7 | 6 | 4 | 3 | 2 | 1 | 0.7 | 0.6 | 0.5 | 0.3 | ||||||||
