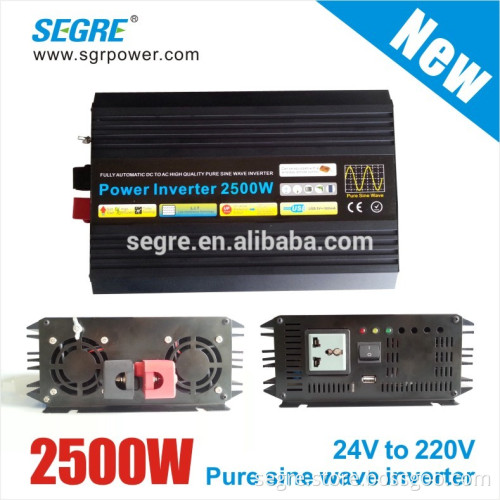

12V 24V 36V 48V DC to 110V 220V AC power inverter 2500W pure sine wave inverter for industrial and home use

12V 24V 36V 48V DC to 110V 220V AC power inverter 2500W pure sine wave inverter for industrial and home use   Product Description   The pure sine wave solar inverter is a kind of conversion device which can convert 36v dc voltage to 110v ac voltage. It can support for 2500w power range of 110v voltage electrical appliances, widely used in Computers, medical instruments, cash registers, TVs, DVD players, audio equipment, fax machines, limousines, buses, RVs, air-pumps, various types of light duty motors, etc.    Hot Sale Points   1. Full power 2500w  Pure sine wave output, super load capacity

2. High surge capacity for starting demanding loads

3. Stable output voltage and frequency

4. Low no-load current draw

5. Digital microprocessor design

6. Original imported  Materials

7. Alloy Aluminum shell, Intelligent disperses heat system

8. external Fuse

9. Advanced STM technology

10. High-frequency technology, small volume

11. Different Socket and OEM socket are available

12. Short circuit alarm and protection

13. Overload alarm and protection

14. Reverse polarity protection

15. Intelligent over temperature alarm and shutdown

16. High voltage alarm and shutdown

17. low voltage alarm and shutdown
18. pure sine wave solar inverter
Product protection function nouns explain

•Overheating protection: If the inverter internal temperature or ambient temperature is too high, and inverter Automatic temperature protection to stop the output, to ensure the safety of electrical equipment.
•Low-voltage protection: When the battery or power supply voltage is too low, the inverter will automatically shutdown protection to stop output to protect the battery or power supply is not compromised.  •Over-voltage protection: When the DC input voltage exceeds the normal range, the inverter will stop automatically shut down to protect the output, note that the voltage is too high may damage the machine. •Overload Protection: When the connected equipment exceeds the inverter rated power Watt,the inverter will automatically shut down to stop output.
•Output short-circuit protection: when external electrical equipment short-circuit with the device itself, the inverter will automatically be turned off to stop the output.
• Reverse polarity protection: when dc input reversely, the fuse blows to protect inverter,the inverter could work after you replace the external fuse    Product Specification

Model	SGR-NC25011	SGR-NC25012	SGR-NC25021	SGR-NC25022	SGR-NC25031	SGR-NC25032	SGR-NC25041	SGR-NC25042
Continuous output	2500W
Surge Power	5000W
input Voltage	12V	12V	24V	24V	36V	36V	48V	48V
AC Voltage	110V	220V	110V	220V	110V	220V	110V	220V
Regulation	Vrms ±3%
Frequency	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz
Wave Form	Pure Sine Wave
Total Harmonic Distortion	THD < 3%
USB Output	DC 5V ± 5% 500mA
Low Battery Alarm	10.5V ± 2%		21V ± 2%		31.5V ± 2%		42V ± 2%
Battery Voltage Selected	10V±2%		20V± 2%		30V±2%		40V ±2%
High Battery	16V ± 2%		32V ± 2%		48V ± 2%		64V ± 2%
No load current	1900mA		950mA		500mA		350mA
Efficiency	87%
Short-circuit	Yes
Overload	Yes
Reverse polarity protection	Yes
Intelligent Design Heat Auto Control	Fan Start : 42°C ± 3 ,  Fan Stop : 38°C± 3
	High Temperature Shut Down : 70°C±3   ,   Restart Output : 55°C±3
Dimensions (mm)	370+33 (D) x 217 (W) x 88(H)
Weight	6.5kg

  If your demond is out of our specification, please contact us for OEM design   Output type:       Product detail photoes   Packaging & Shipping pure sine wave solar inverter packaging: 2pcs/carton box carton size: 48*32.5*30cm G.W: 14KGS/carton Shipping: pure sine wave solar inverter we usually ship sample with DHL Express For big order;we advice to ship it by sea to save your cost     Our Services we offer power inverter from 75w to 3000w for home and car use,also we produce kinds of power adapters for laptop with our enigneer team,we accept OEM/ODM service,welcome to contact us if you need any help! Sample laptop charger could be send to you pure sine wave solar inverter
