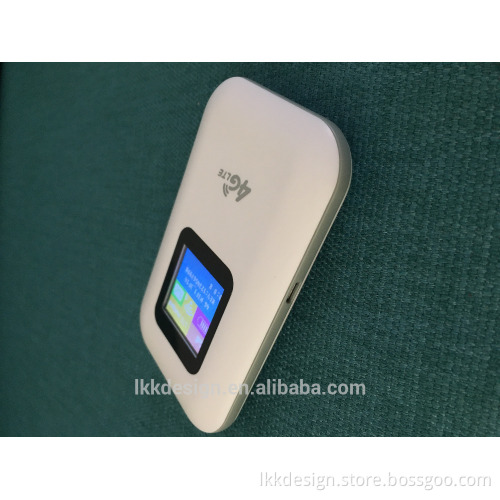

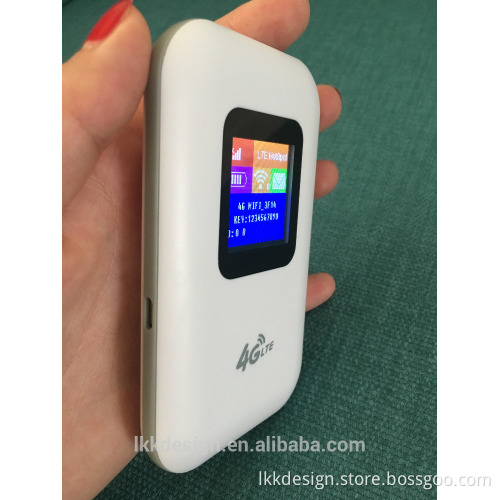

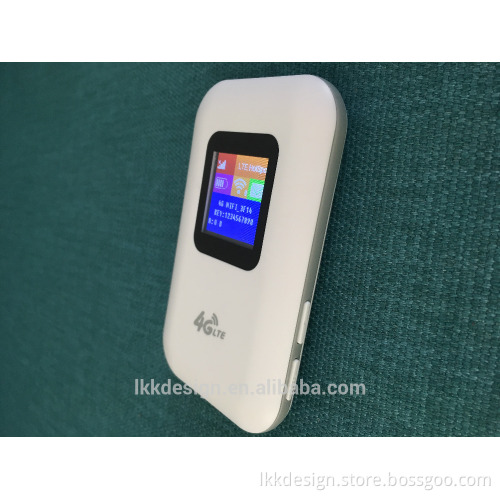

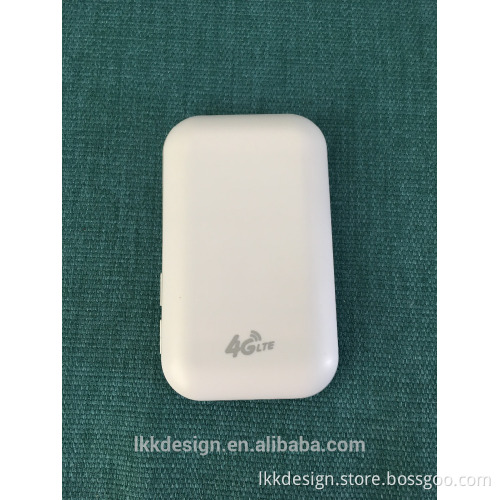

LCD 4G LTE Wireless FDD TDD WCDMA Router Slim Battery Router Modem B20

Product Description

Product Name	LCD 4G LTE Wireless FDD TDD WCDMA Router Slim Battery Router Modem B20
Band/Mode	TDD-LTE: B38/39/40/41 FDD-LTE: B1/B3/B5/B7 TD-SCDMA: B34/39 UMTS:B1/B2/B5/B8 GSM Quad Band
802.11b/g/n	802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz)
Antenna	4G/3G/2G Main antenna, 4G MIMO/3G Rx Diversity antenna, WiFi antenna
SIM Card slot	Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102
RF Power	Class 4 for UMTS/HSPA/LTE;
Functions	4G to wifi, QoS and PS, forwarding data to and from WAN,VPN Pass-through
LED Screen	Wifi, user amount, battery, Messasges

Products Show Features: WLAN: 802.11 b/g/n
5 seconds fast boot ,one touch connection
10 Wi-Fi enabled devices connection at the same time
Speed up to 100Mbps/50Mbps(theoretical value)
Built-In Battery 2400mAH
Support Windows XP/Vista/Win7,Win8,Mac OS,Andriod

Model: M909a
Mobile WiFi Network: FDD/TDD LTE/HSPA+/UMTS+GSM

B1(2100MHz)/B3(1800MHz)/B5/B7(2600MHz)/B8(900MHz)/B20(800MHz) (Optional);
TDD LTE B38/B39/B40/B41
B1(2100MHz) / B8( 900MHz)or B1(2100MHz)/ B5(850MHz)(Optional)
B5(850MHz)/B8(900MHz)/B3(1800MHz)/B2(1900MHz)

Speed
LTE DL:100Mbps,UL:50Mbps
HSPA+/UMTS DL :42/21.6/14.4/7.2Mbps,UL:5.76Mbps/384Kbps

Battery:  2400mAh
Dimensions: 100mm*60mm*16mm,Weight:100g(With Battery)
