AC Power rail 4CH 5A high quality dmx512 light controller

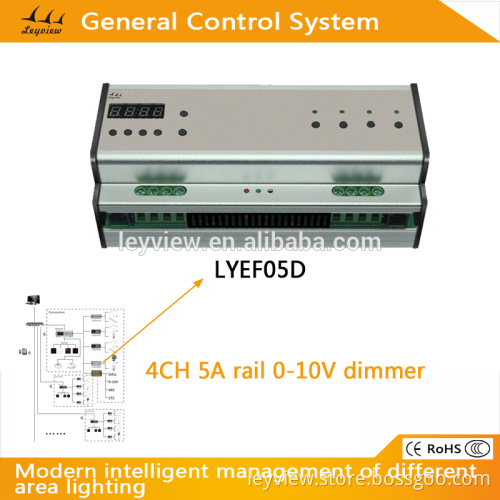

Product Description   Product name: 4CH 5A Rail 0-10V Dimmer Model No.: LYEF05D      1. Summarize of the product The product is our company general lighting control system of 0 ~ 10 v dimmer extension, the
extension support two kinds of agreement, can output 4 circuit, per circuit includes a set of AC
output power and a set of DC 0 - 10 v analog output, the extension receives the widespread
adoption of international DMX - 512 standard protocol, DMX control signal can be converted into 0 ~
10 v analog voltage signal to drive leds, can control of extension set single zone and more zone.
Support compatible with yong Lin EDX protocol, with software and control panel.   2. Rohs rgb led Controller Technical Parameters
2.1 Input power:AC100-240V
2.2 Output:each circuits 5A
2.3 Communication protocol:EDX/DMX-51
2.4 Working temperature:-20-60℃
2.5 Working power consumption :<2W
2.6 Installation: 5MM rail
2.7 Signal connector : 4 PIN Green terminal station 5.0mm
2.8 Output: 4 circuits PWM common-cathode,4 circuits 0-10V
2.9 External dimension:186(W)×92(H)×61(D)mm

Serial  No.	Function	Instructions
1	power input port	the AC power input terminal (100-240)
2	Dc output port	the DC output terminal(0-10V)
3	ac power	10V) 3 ac power the AC power output terminal
4	function key	FCN DMX
5	DMX/EDX connection port	Connection D + and D - signal lines
6	Power light	When power on ,the power light bright
7	DMX communications light	Often off, extension and host in communicat ion,the light flash
8	Real-time output button1 2 3 4	by key real-time control 0 ~ 10 v output
9	Digital display screen	the display Setting the parameters

  3.  Basic operation methods 3.1 Setting DMX address
press “DMX”at the same time to press , can adjust the DMX IN starting
circuit. As picture, set 1as DMX starting address    3.2 Check current output values for circuits fo rohs controller wifi
In the main interface press  button, can check circuit output value, can
see the top two in flashing. Press right key, so you can switch to dimming output editor,
behind two LED digital tube in flashing, press [DMX ]exit back to the main interface.
As picture, the second circuit is 99.   3.3 Regional Setting
For EDX protocol, the user must be set before using equipment regional code.The code
is divided into two parts: the first part is the regional , the second part number as the
starting circuit.
Press the function keys ,adjusted to the function of the regional setting, at that time the
top two LED digital tube flashes , press key to modify the current
regional number. Press right/left keys so you can switch to the adjustment of the starting
circuit, at this stage, you will find that behind two numbers in the flashing, at the same
time press key can modify the starting circuit. As picture :the regional
is 1,the starting circuit is 1.   4. Scenario editing store
Scenario editing is finished, press the DMX key,then press [1 ]key, can save
the current output to scenario 1.
The other scenario save like this:
SCENE2:[DMX]+[2]
SCENE3:[DMX]+[3]
SCENE4:[DMX]+[4]
SCENE5:[DMX]+[FCN]+[1]
SCENE6:[DMX]+[FCN]+[2]   5. Attention matters
5.1 Please do not install the controller in a closed or high pressure, high magnetic field area. 5.2 In order to reduce the risk of short-circuit fire and device damage, please make sure the right connection
5.3 To ensure the installation in a ventilation area to ensure the right temperature
5.4 Check whether the voltage and the power supply is matching the controller
5.5 Before power on, please check whether the circuit is properly connected, and instrument
test whether there is a short circuit
5.6 When there is a problem, please don't open the shell of the controller optionally.
5.7 This manual is only applicable to this type controller, if any updated without prior notice       Company Information  ]]  Shenzhen Leyview Intelligent Control Co., Ltd URL: http://www.leyview.com/en/   Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and production of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leyview brand.  We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building.  Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight     Our Services     Verified Information   This information was Verified by SGS Group and is valid for the following period: 2016/01/28 --- 2017/01/27 The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >> The competitive advantage of product line: The company established in 2014, located in Shiyan Town of Shenzhen City, they have obtained CE Certificates, and have two assembly lines.     FAQ   Question 1: Are you a factory or a trading company? Answer: We are a factory. Question 2:  What's the main business of Leyview? Answer: Leyview committed to the development and production of control system, to provide professional lighting control systems and solutions. Question 3: What' s the main products of Leyview? Answer: We focused on streetlight lighting control system(Zigbee/PLC/RS-485), general control system(DMX) and commercial lighting control system(DALI). Question 4:  What Leyview will do if we have problems after receiving your products? Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we  will do our best to solve any of your problems with our good after-sale service. Question 5: How about your sales model? Answer: We establish the brand as the foundation, with the constant expansion of the brand influence, distributors will replace the ordinary sales model of the market as our main sales channels.     Contact us     Tel: 0086-755-29686602
