High quality and huge capacity dmx 512 8CH 20A light controller

Product Description Product name: DMX 8CH 20A EXP Rail Switch Controller  Model No.: LYL106     1. Summarize of product  The product is our company general lighting control system of 8CH 20 A EPX rail switch extension, can output 8 circuits,  per circuit includes a set of AC output power and a set of output, change the extension to  receive the widespread adoption of international DMX - 512 standard protocol, DMX control signal can be converted to switch signal to control relay switch, can control of extension to  set single zone and more zones.Support compatible with yong Lin EDX protocol, with software and  panel to control.   2.Controller Technical Parameters

Input power	AC100-240V
Output	each circuit 20A
Communication protocol	EDX/DMX-51
Working temperature	-20-60 degree
Installation	35mm rail
Signal connector	4 PIN Green terminal station 5.0mm
External dimension	L275*W92*H61mm

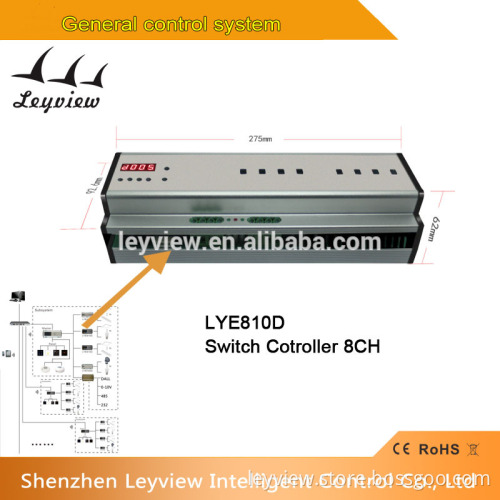

  3. External dimension   4. Key interface instructios   5. Operation process 5.1.Setting DMX address    5.2 Check current output values for circuits     5.3 Regional Setting   5.4 Scenario editing store and adjust       Company Information     URL: http://www.leyview.com/en/   Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and production of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leyview brand. We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building. Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight.           Our Services           Verified Information   This information was Verified by SGS Group and is valid for the following period: 2016/01/28 --- 2017/01/27 The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >> The competitive advantage of product line: The company established in 2014, located in Shiyan Town of Shenzhen City, they have obtained CE Certificates, and have two assembly lines.     FAQ   Question 1: Are you a factory or a trading company? Answer: We are a factory. Question 2:  What's the main business of Leyview? Answer: Leyview committed to the development and production of control system, to provide professional lighting control systems and solutions. Question 3: What' s the main products of Leyview? Answer: We focused on streetlight lighting control system(Zigbee/PLC/RS-485), general control system(DMX) and commercial lighting control system(DALI). Question 4:  What Leyview will do if we have problems after receiving your products? Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we  will do our best to solve any of your problems with our good after-sale service. Question 5: How about your sales model? Answer: We establish the brand as the foundation, with the constant expansion of the brand influence, distributors will replace the ordinary sales model of the market as our main sales channels.     Contact us     Tel: 0086-755-29686602
