rail dali constant current dimmer

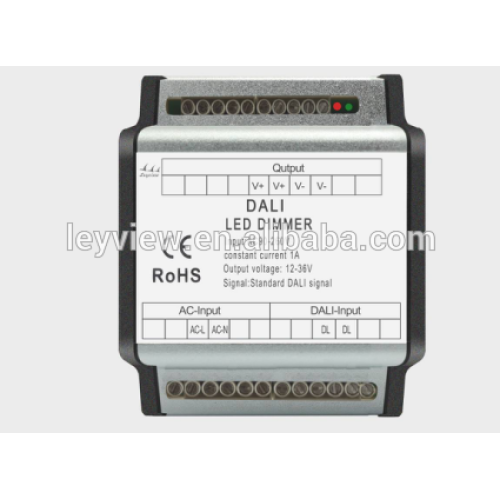

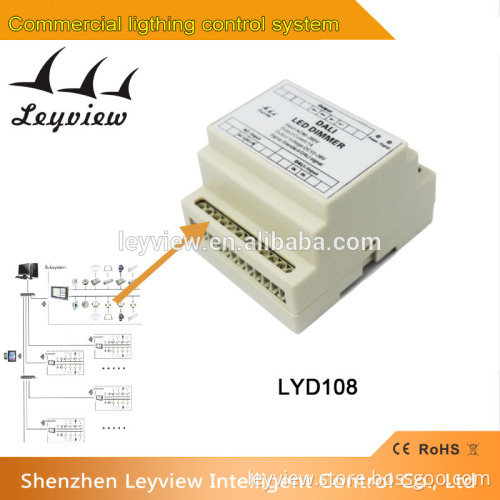

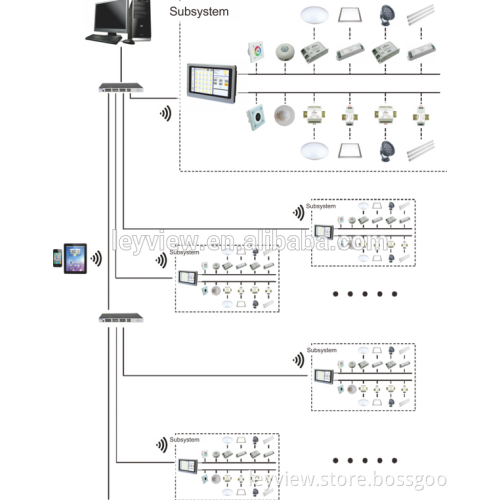

Product Description Commercial lighting control system is our response to store lighting control research and development of a set of intelligent lighting control system,the overall design scheme is based on the principles of humanized operation and personalized.The system can monitor the whole system through the computer network,acknowledge the working state of the current lighting subsystem,inquire the working parameters each node such as current,voltage of lamps and lanterns;In case of emergency control of lighting for the whole system model and a failure report.Through the gateway interface and serial interface and the building of BA system or fire fighting system,security system and so on control system connected to realize the business area of multi-functional intelligent scheduling management.             Product name: Rail DALI constant current dimmer Model No.: LYD108     1. Technical parameters

Input voltage	AC90-260V/45-6HZ
Output voltage	DC17V
Output current	0-250mA
Voltage ripple	less than 350mv
Overall efficiency	more than 72%
Working temperature	-20-60degree
Weight	73g
Dimension	L88*W36*H5mm

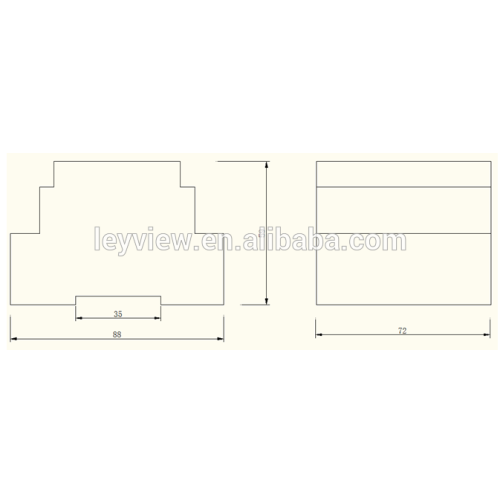

  2. Dimensions           3. Instructions 3.1 Connect the power access with 90-260V 50 / 60HZ AC grid 3.2 Connect the output power with DALI communication bus.( reference to Typical Application Diagram)   4. Interface Description 1) AC-L:90-260V AC grid FireWire input 2) AC-N:90-260V AC Grid Neutral input 3) DA+:DALI positive power supply output 4) DA-:DALI negative power supply output   Company Information     http://www.leyview.com/en/   Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and production of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leyview brand.  We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building.  Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight.     Our Services       Verified Information   This information was Verified by SGS Group and is valid for the following period: 2016/01/28 --- 2017/01/27 The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >> The competitive advantage of product line: The company established in 2014, located in Shiyan Town of Shenzhen City, they have obtained CE Certificates, and have two assembly lines.     FAQ   Question 1: Are you a factory or a trading company? Answer: We are a factory. Question 2:  What's the main business of Leyview? Answer: Leyview committed to the development and production of control system, to provide professional lighting control systems and solutions. Question 3: What' s the main products of Leyview? Answer: We focused on streetlight lighting control system(Zigbee/PLC/RS-485), general control system(DMX) and commercial lighting control system(DALI). Question 4:  What Leyview will do if we have problems after receiving your products? Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we  will do our best to solve any of your problems with our good after-sale service. Question 5: How about your sales model? Answer: We establish the brand as the foundation, with the constant expansion of the brand influence, distributors will replace the ordinary sales model of the market as our main sales channels. Contact us     Tel: 0086-755-29686602
