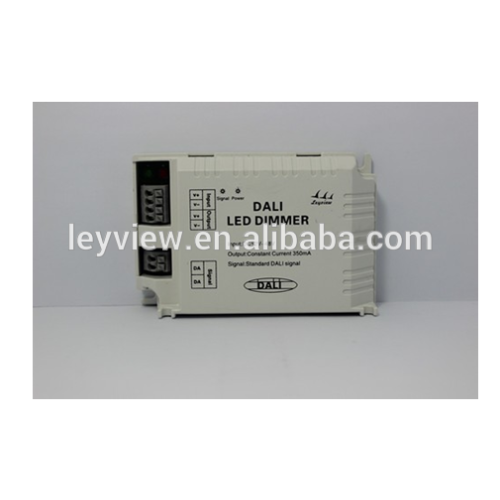

DALI Rail Low Voltage Dimming Lighting Control System

Product Description Product name: DALI Low Voltage Led Dimmer Switch Model No.: LYD114     1. Technical Parameters

Working temperature	-20-60degree
Supply voltage	DC12-24V
Dimming signal	Standard IEC60929 DALI signal
Output	1 CH NMOS drain output
Dimming range	0.1%-100%
GW	164g
NW	116g
Dimension	L 120mm* W65mm * H30mm
Package Size	L123mm * W88mm * H42mm
Output current	<4A
Output power	12V:<48W, 24V:<96W
Protection class	IP20

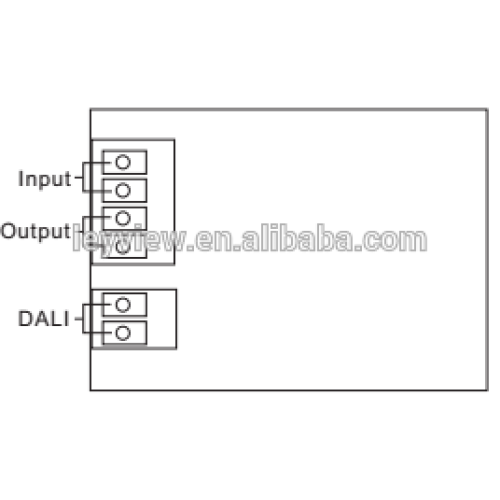

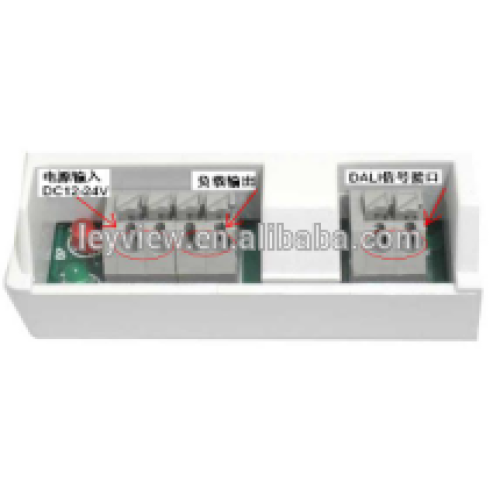

    2. Dimension     3. Interface Instructions     Company Information     http://www.leyview.com/en/   Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and production of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leyview brand.  We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building.  Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight.       Our Services       Verified Information   This information was Verified by SGS Group and is valid for the following period: 2016/01/28 --- 2017/01/27 The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >> The competitive advantage of product line: The company established in 2014, located in Shiyan Town of Shenzhen City, they have obtained CE Certificates, and have two assembly lines.     FAQ   Question 1: Are you a factory or a trading company? Answer: We are a factory. Question 2:  What's the main business of Leyview? Answer: Leyview committed to the development and production of control system, to provide professional lighting control systems and solutions. Question 3: What' s the main products of Leyview? Answer: We focused on streetlight lighting control system(Zigbee/PLC/RS-485), general control system(DMX) and commercial lighting control system(DALI). Question 4:  What Leyview will do if we have problems after receiving your products? Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we  will do our best to solve any of your problems with our good after-sale service. Question 5: How about your sales model? Answer: We establish the brand as the foundation, with the constant expansion of the brand influence, distributors will replace the ordinary sales model of the market as our main sales channels.     Contact us   Tel: 0086-755-29686602
