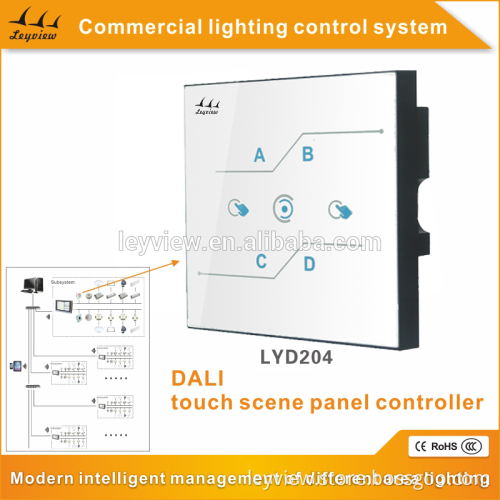

DC12V 2A Voltage and Remote Control type Dali Touch Controller

Product name: DALI Scene Touch Panel Model No.: LYD204          1.Technical Parameters

Power supply	DALI bus
input signal	touch panel
output signal	standard DALI signal
working temperature	-20-60digree
input current	less than 6mA
gross weight	195.6g
net weight	139.5g
packing size	L80*W100*H75mm

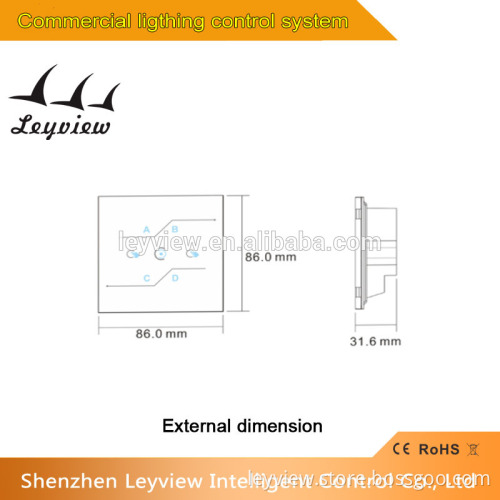

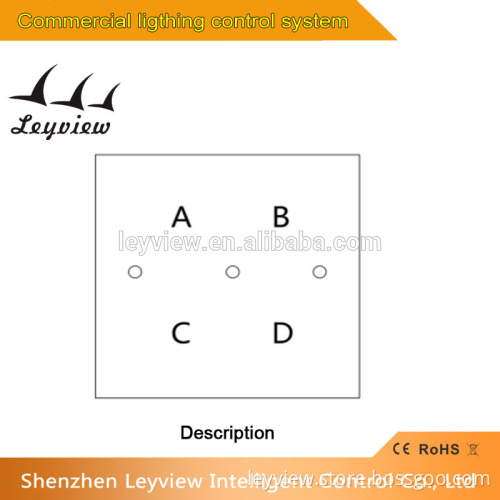

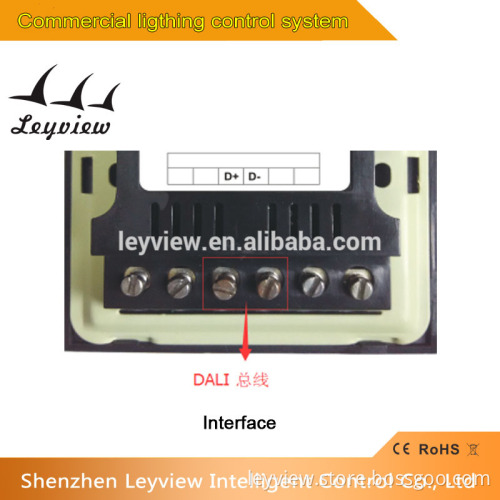

    2. Dimensions & Descriptions   3. Interface Instructions     4. keys instruction                      5.Instructions   DALI touch panel support the user to customize the keys, and can set it to pointed scene, grouping and device.Please refer to the following "Configuration Method".   For the first time using, the key function of A,B,C,D is respectively defaulted to be scene of  0,1,2,3. 5.1 Scene control:When a user configured keys to scene function, touch the corresponding key, and all touch panel equipment on the same bus will be executed scene 0,  the left and right keys are not available at this time  (the left and right key can only be used for grouping and dimming of the equipment ), press the close button to close the brightness.   5.2 Grouping control:When a user configured the button into grouping function, touch button can select the set grouping, choosing the groups which are selected can close brightness of the groups at this time, and then touch the left and right keys to dimmer the chosen grouping , touch the off button to shut down the output of equipment.   5.3 Device control:When a user configured the button into equipment function, touch keys can light all set devices, and then touch left and right keys to dimmer the devices chosen, Company Information   http://www.leyview.com/en/   Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and production of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leyview brand.  We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building.  Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight.       Our Services         Quality assurance   To ensure the products’ quality, products’ safety, and clear responsibility of both parties, especially for the following assurances: 1. All products have qualified the "quality inspection report" and related product certification, comply with the relevant provisions of the corresponding country. 2. To ensure that the secretary for the products meet quality standards of corresponding regions and are responsible for the quality of products. Provide the necessary quality information to distributors when necessary, such as product testing reports,etc.. 3. Product packaging, trademarks, etc. comply with the relevant provisions of the corresponding country. 4. Distributors should operate strictly according to the method of product specifications, distributors should be responsible to product quality problems caused by their improper use of the products.  5.For product quality problems distributors blamed, Leyview will actively cooperate with the proper solution, if be our responsibility, we’ll fully assume. 6. The quality issues: distributors should be in strict accordance with the formulated technical standards of our products for inspection, ensure a fair and scientific test, for the remainder samples of unqualified shall be retained for 1 week. 7. A warranty period of 3 years from the date of purchase(shall prevailed by the date of purchase invoices). 8. During warranty period, the product failure occurs during normal use, offer free repair service, but the damage caused by the flood, fire, earthquake or other force majeure aren’t covered under this warranty, but still provide paid services. 9. Product failure beyond the warranty period, our company continued to provide maintenance, parts replacement and other services, charge a service fee.'     Verified Information   This information was Verified by SGS Group and is valid for the following period: 2016/01/28 --- 2017/01/27 The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >> The competitive advantage of product line: The company established in 2014, located in Shiyan Town of Shenzhen City, they have obtained CE Certificates, and have two assembly lines.     FAQ   Question 1: Are you a factory or a trading company? Answer: We are a factory. Question 2:  What's the main business of Leyview? Answer: Leyview committed to the development and production of control system, to provide professional lighting control systems and solutions. Question 3: What' s the main products of Leyview? Answer: We focused on streetlight lighting control system(Zigbee/PLC/RS-485), general control system(DMX) and commercial lighting control system(DALI). Question 4:  What Leyview will do if we have problems after receiving your products? Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we  will do our best to solve any of your problems with our good after-sale service. Question 5: How about your sales model? Answer: We establish the brand as the foundation, with the constant expansion of the brand influence, distributors will replace the ordinary sales model of the market as our main sales channels.     Contact us     Tel: 0086-755-29686602
