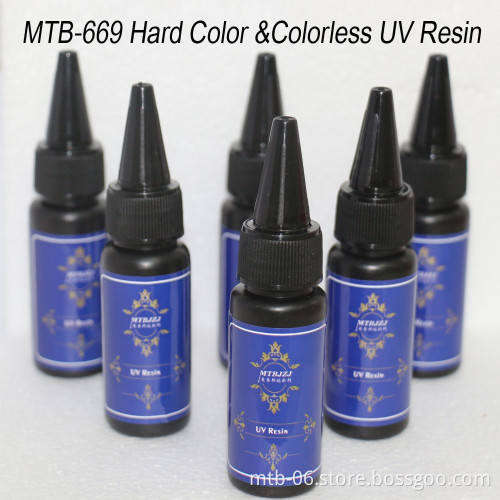

MTB-669 Hard Color&Colorless UV Resin

Product Description 1.A one-component, acrylic ester UV cured adhesive.

2.Has the color of crystal and accept OEM&ODM according to your colors.

3.Adopt Japan's ultraviolet hardening resin raw materials

4.Has excellent adhesion for glass, plastic, metal and so on .

5.Good flexibility , corrosion resistance and bending character .

6.Fast curing time (surface) .

7.Can be moisture, high temperature, high humidity, UV radiation and insulation resistance.

8.Typical application for DIY doming and coating on jewelry accessories of bracelet, pendant, necklace, earrings, ring, gemstone.
9.Good for potting on glass and circuit board.
Technical Parameter Physical Performance

Item	MTB-669
Appearance	Clear &Various for your choice
Viscosity (@ 25 ℃, in rotation viscometer)	30000-32000 mpa. s
Shelf Life	12M

Curing Condition
(The following data was measured under Philips 36 w UV lamp irradiation)

Curing Time(Surface drying)	60s
Deep Cure Time(with glue thickness of 1mm)	20s
Cured Completely Energy	800 mj/cm²

Hardness
(The following data is measured in the infinite source of mercury lamp accumulated energy 800 mj/cm squared after curing)

Hardness(Shore D)

75

Dielectric constant& Dielectric Loss

Item	Dielectric constant /Dielectric Loss
@ 10 kHz	4.4/0.02
@ 1 MHz	4.1/0.03
@ 10 MHz	4.0/0.04

Item	Figure
Volume Resistivity (Ω·cm)	8.0 x 1015
Surface Resistivity(Ω·m)	5.9 x 1015
Dielectric Strength (kV/mm)	20

Features 1.Has excellent adhesion for glass, plastic, metal and so on.

2. Fast surface curing (drying)speed.

3.Can rapidly achieve surface debonding effect in high power under UV light.

4.With flexible formula, good effect to the soft circuit boards and soft plastic.

5. With low viscosity, good permeability, and can be mechanical spraying.

6.Excellent moisture, high temperature, high humidity and UV radiation resistance, can have the stable performance even if in harsh environment.

7.Can choose the fluorescence effect formula, after curing with low power light rubber will appear blue by an ultraviolet lamp in a dark room.
Curing Methods 1)UV Lamps

2)UV Flashlights
Application Show Packing & Delivery Packaging Details

For UV Resin glue ,it is 30ml/pc, 50pcs/ box and 12 boxes/carton.And we can do the packing as your designs and accepet OEM &ODM

Delivery Detail

Shipped in 1 days after payment
Storage conditions 1.Please store in a cool, dark place.

2.After open the bottle caps, please cover cap again.

3.The rest glue(not used ) can not pour back into the original packaging bottle.

4.The best storage temperature is in 8-28 ℃, too high or too low will affect the adhesive solution performance.
Company Information MeiTaiBang Co.,LTD(ShenZhen)is founded in 1998 and specialized in producing and researching glue with a modern corporate management system. We constantly try our best to innovate to meet the needs of customers through the efforts of hight-level specialists as well as bringing in precise devices and equipment.And these new products receive high praise from customers.

With our tenets‘hight quality and sincere service’,let's hand to create a beautiful future.

Thank you for your patience to watch,If you are interested in our products .
Welcome to contact me.
