Optically Clear Adhesive

Specifications 1.High resistance, low shrinkage rate

2.Resistance to wet, cold resistant, heat-resistant, resistant to cold and hot shock

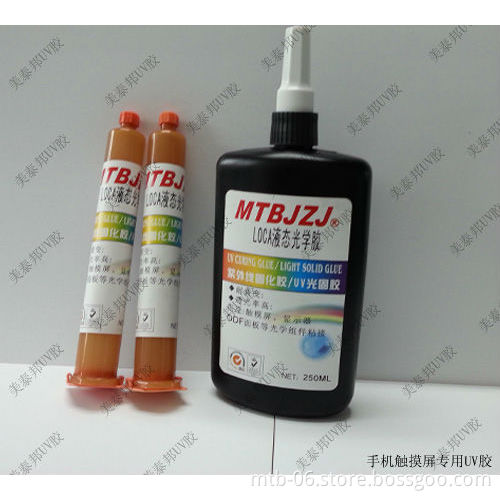

     Touch Panel/Lens UV Glue     LOCA Optical Liquid Glue   Character   •High resistance, low shrinkage rate   •Resistance to wet, cold resistant, heat-resistant, resistant to cold and hot shock, have excellent performance.   •All kinds of high and low viscosity, adjusted in accordance with customer demand.   • High excellent transparency.

Item	Apperance	Viscosity	Reaction Wavelength	Refractive Ridex	Transmissivity
MTB-2101	Clear Liquid	850cps	365nm+Visible Light	1.50	99%
MT-2202	Clear Liquid	2,200cps	365nm+Visible Light	1.50	99%
MT-2303	Clear Liquid	3,300cps	365nm+Visible Light	1.50	99%
MT-2404	Clear Liquid	39,000cps	365nm+Visible Light	1.50	99%
MT-2505	Clear Liquid	2,600cps	365nm+Visible Light	1.50	99%

  Curring Condition   Cured by UV light:2000mj/cm2(220nm~330nm)   Materials Performance and Features After Curing

Hardness(Shaw’s A)	Dielectric Constant(1MHZ)	Haze	Yellowing Figure
13	2.7	<0.2%	<0.4

      Using Instruction   1. For the best performance, bonding surfaces should be clean.       2. Curing rate is dependent on lamp intensity, distance from light source, exposure time, bonding gap and the intensity of pervious to UV light of bonding substrate.       3. Recommended intensity for cure in an adhesive application is 30mW/cm²~100mW/cm², and wavelength is 300~450nm.       4. Excess uncured adhesive can be wiped away with acetone.       5. Bonds should be allowed to cool for 30 minutes at any rate before subjecting to any test and service loads.       Note   1.Avoid exposure to light.       2.Never breathe product vapors       3.Avoid any contact with eyes, skin by wearing full protective gear.       Storage       1. Optimal storage temperature is 8°C to 25°C (46°F to 77°F) . Storage out of this temperature range can adversely affect product properties.       2. Shelf life is 6 months when stored under these conditions out of sunlight and in original, unopened containers.       3. Glue removed from containers may be contaminated. Do not return glue to the original container.
