New type Meanwell driver 85v-265v AC high power outdoor 70 watt led flood light

New type Meanwell driver 85v-265v AC high power outdoor 70 watt led flood light

Model NO	Size	Lumens	LED Type	Beam angle	Color temperature
WJ-FG3-30W	215*184*84mm	2400lm±10%	Epistar COB	120	2700K-6500K
WJ-FG3-50W	253*200*98mm	4000lm±10%	Epistar COB	120	2700K-6500K
WJ-FG3-70W	291*250*116mm	5600lm±10%	Epistar COB	120	2700K-6500K
WJ-FG3-100W	309*250*192mm	8000lm±10%	Epistar COB	120	2700K-6500K
WJ-FG3-120W	315*310*187mm	9600lm±10%	Epistar COB	120	2700K-6500K
WJ-FG3-150W	375*310*187mm	12000lm±10%	Epistar COB	120	2700K-6500K
WJ-FG3-180W	400*340*192mm	14400lm±10%	Epistar COB	120	2700K-6500K
WJ-FG3-200W	400*340*192mm	16000lm±10%	Epistar COB	120	2700K-6500K

1. Energy-saving with high efficency LED making, environment friendly and     long lifespan upto 50,000 hours. 2. Special reflector made from die cast aluminum for the best light diffusing. 3. Antisepticise closed silicone ring for light dustproof and waterproof. 4. Both AC and DC voltage are available. 5. Luminous flux ≥ 2 times of HPS. 6. Waterproof, encapsulated by good thermal conductive silicone glue.  7. In order to meet the different irradiation angles,light direction can be     adjusted. 8. Use high-quality silicone gaskets,high performance waterproof. 9. Finished with epoxy powder paint,resistant to corrosion,no fading. 10. Wide beam angle,huge lighting area. 11. Anti-shock,anti-hit led flood light.

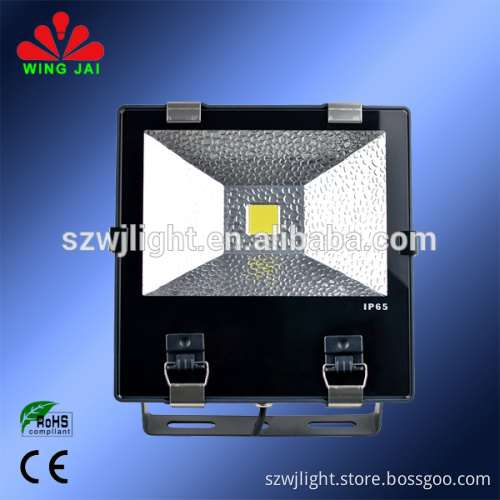

Model NO		WJ-FG3-70W
Power		70W
Input volt		AC220V-AC260V&12V/24V
Frequency		50Hz-60Hz
PF		≥0.9
Beam angle		120 degree
LED Qty		1pc COB
LED Brand		Epistar
LED Light efficency		80lm/W
Luminous flux		5600lm±10%
Luminous efficency		>95%
Color temperature	Warm white	2800K-3500K
	Nature white	4000K-4500K
	Cool white	6000K-6500K
CRI(Ra)		>75
Environment temperature		-40℃to+60℃
Storage temperature		-25℃~65℃ (25℃ best)
Lifespan		50000 h

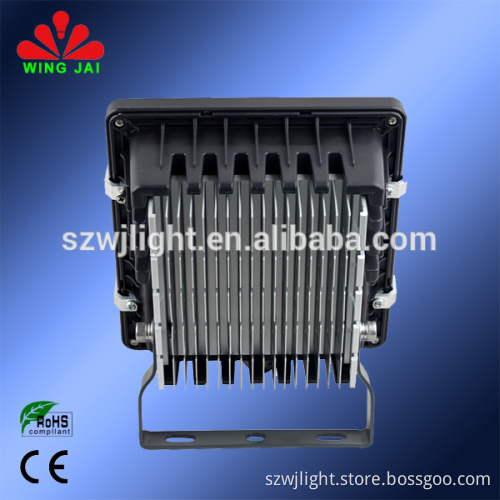

material		Finned Aluminum+ reflector+ glass
Unit size		291*250*116mm
Packaging		70*39.5*39cm/4units/20KG
Waterproof		IP65
Certificates		CE, RoHS
Driver		MeanWell driver or other ce  driver
Series other available model		10w/20w/30w/50w/100w/120w/150w/180w/200w
