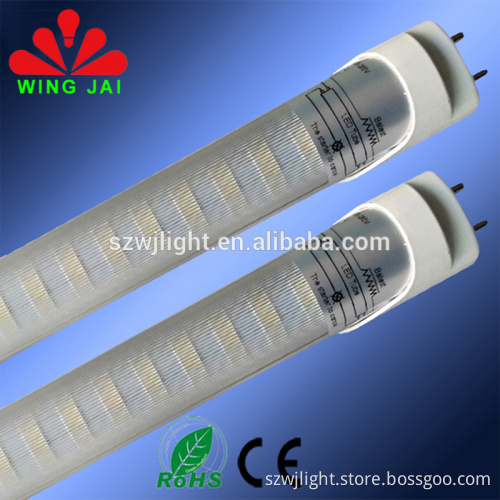

2015 best selling innovative driverless g13 base high power 2700k-6500k smd led tube t8 20w

2015 best selling innovative driverless g13 base high power 2700k-6500k smd led tube t8 20w

Get Latest Price

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

2015 best selling innovative driverless g13 base high power 2700k-6500k smd led tube t8 20w

Model NO	length	lumens	LED chip	LED Qty	Watt/LED	Beam angle	CCT
WJ-T8N-15W-60-A3	2ft-60cm	1350±10%	2835/Epistar	85	0.2W	120	2800K-6500K
WJ-T8N-18W-90-A3	3ft-90cm	1620±10%	5730/Epistar	85	0.5W	120	2800K-6500K
WJ-T8N-20W-120-A3	4ft-120cm	1800±10%	2835/Epistar	90	0.2W	120	2800K-6500K
WJ-T8N-30W-120-A3	4ft-120cm	2700±10%	5730/Epistar	90	0.5W	120	2800K-6500K
WJ-T8N-36W-150-A3	5ft-150cm	3200±10%	2835/Epistar	170	0.2W	120	2800k-6500k

1.High Luminous Flux and efficiency, 20W to replace 36W Fluorescent, 9W to replace 18W Fluorescent. 2. Standard G13 base, match with traditional T8 fixture 3. long life span up to 50000 hrs ideal option for office. 4. Using 1/2 aluminum pipe structure, good appearance ,good heat Dissipating capacity. 5. Built-in constant current driver, high efficiency, stability 6. Using the imported SMD as light source, high light efficiency, long life span. 7. Quick response time, the LED response time is nanosecond 8. Environmental protection, no heavy metals and harmful gas. 9. Energy-saving, can save energy more 80% than traditional fluorescent lights. 10. No flicker, start quickly, soft light, protect your eyes. 11. Easy to install and use.

Model NO		WJ-T8N-20W-1200-A3
Power		20W
Input volt		AC200V-AC260V
Frequency		50Hz-60Hz
PF		≥0.92
LED Type		2835SMD (0.2W/pcs)
LED Qty		90pcs
LED Brand		Epistar
LED Light efficency		95lm/W
Lumens	Warm white	1700lm-1800lm
	Nature white	1800lm-1900lm
	Cool white	1800lm-1900lm
Luminous efficency		>95%
Color temperature	Warm white	2800K-3200K
	Nature white	4000K-4500K
	Cool white	6000K-6500K
CRI(Ra)		>75
Beam angle		120°
Environment temperature		-30℃to+40℃
Storage temperature		-25℃~65℃ (25℃ best)
Lifespan		50000 h
material		PC + Aluminum
Driver		Without driver inside
Size		120026
Waterproof		IP40
Certificates		CE, RoHS
Series other available model		9w/15W/18W/30W/36W

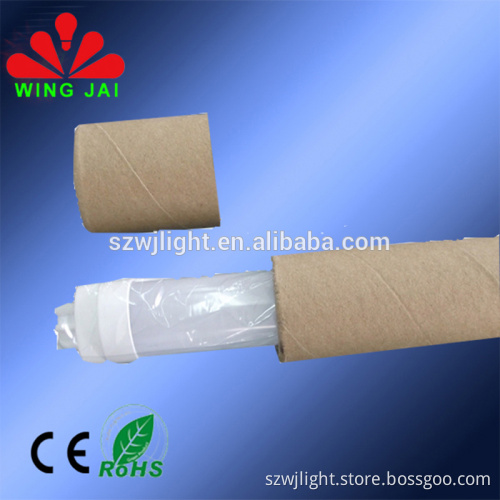

Unit length	Qty/Carton	Dimension	GW/PCS (G)	GW/CNT	Qty for 20" Container
2ft-60cm	25	*672221cm*	250	7.5KG	21,000
3ft-90cm	25	*972221cm*	350	11KG	14,000
4ft-120cm	25	*1272221cm*	450	13KG	10,500
4ft-120cm	25	*1272221cm*	450	13KG	10,500
5ft-150cm	25	*1572221cm*	550	16.5KG	8,500
