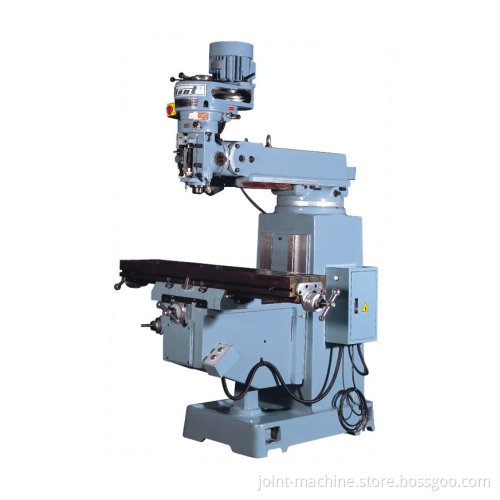

Joint brand High demand products and high accuracy economical turret milling machine 3S

Joint brand High demand products and high accuracy economical turret milling machine 3S Product Description                                                               1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle ±45°/±90°;
4.OEM MANUFACTURER; 5.For electric parts, mould and hole, slot and frame processing; 6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm;
7.Spindle tolerance 0.002mm;
8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.   Specification

Model	3S
Table size	1270*254*90mm
Table travel	840*395*350mm
Travel of spindle quil	127mm
Max.Distance from the spindle nose to table	400mm
Spindle (Rotation speed)	66-4530(16speed)/50HZ
Spindle (Taper)	R8(NT30)
Spindle (Rated power)	3HP
Tilt Angle (Forward and Backward)	±45°
Tilt Angle (Left and Right)	±90°
Dimension	1500*1700*2150mm
Net weight	1280kg

  Accessories 1.Standard accessories       Oil pump            Working light        Draw bar    Way cover    Operation manual  Tool and toolbox 2.Optional accessories R8 collects Clamping kits 6" vise Coolant system DRO Power feed Elevating motor                                                                         After-sales services Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.     FAQ                                                                                      Q: Are you trading company or manufacturer ? A: We are a factory. Q: How long is your delivery time? A: Generally it is 5-15days if the goods are in stock. or it is 15-20days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A: 30% in advance.and the rest payment should pay before delivery. Q: How many years have your company established? A: 20 years, our company built in 1995.
