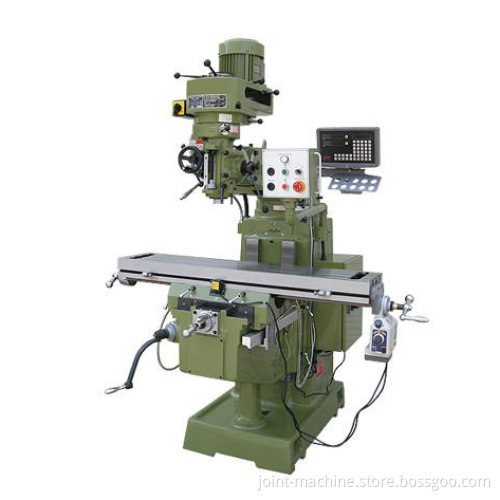

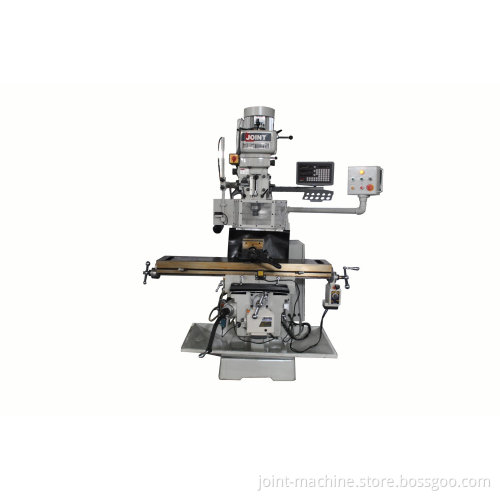

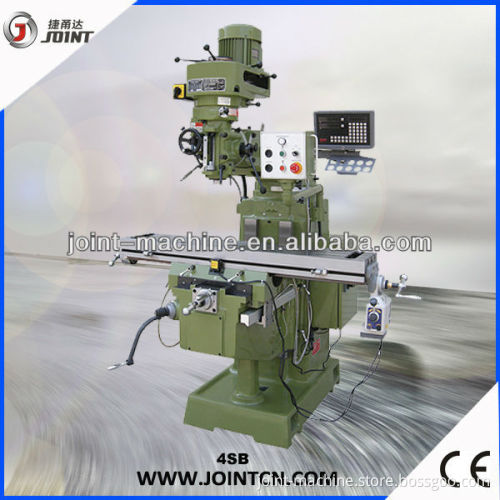

JOINT high precise turret milling machine 4SB

China manufacturer offer turret milling machine 4SB Specifications 1.OEM manufacturer
2.NSK P4 spindle bearing
3.CE certificate
4.Spindle tolerance 0.002mm
5.Taiwan original milling machine

  Features: 1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle ±45°/±90°;
4.OEM MANUFACTURER; 5.For electric parts, mould and hole, slot and frame processing; 6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm; 7.Spindle tolerance 0.002mm; 8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.   Specification:Milling machine 3VA

Model	4SB
Table size	1270*254*90mm
Travel (Longitude)	900mm
Travel (Cross ward)	370mm
Travel (Vertical)	360mm
Travel of spindle quill	127mm
Max.Distance from the spindle nose to table	400mm
Spindle (Rotation speed)	80-5440RPM
Spindle (Taper)	R8/NT30
Spindle (Rated power)	3HP
Tilt Angle (Forward and Backward)	±45°
Tilt Angle (Left and Right)	±90°
Dimension	1500*1700*2150mm
Net weight	1500kg

  Accessories: 1.Standard accessories: Oil pump Working light Draw bar Way cover Operation manual Tool and toolbox 2.Optional accessories: R8 collects or NT30 milling chuck Clamping kits 6" vise Coolant system DRO Power feed Elevating motor     Workshop:Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.   Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.   Certificate and Honour: 1. 8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as" National Grade HI-Tech Enterprise". 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
