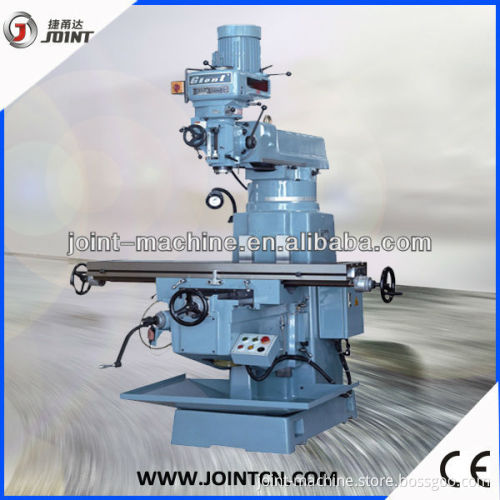

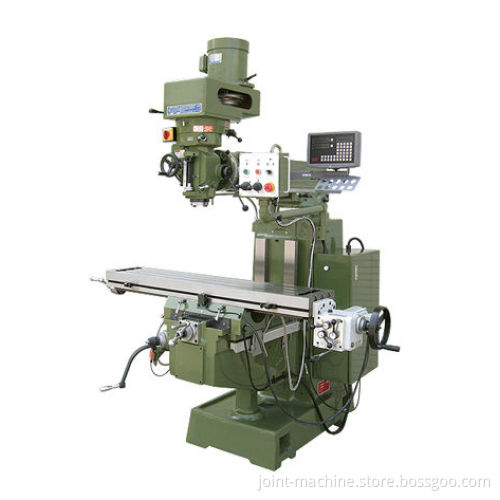

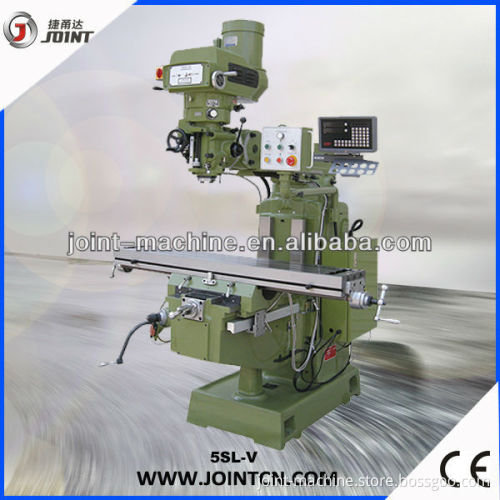

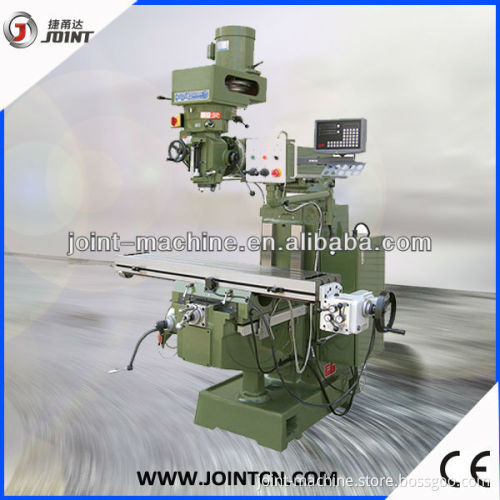

Vertical milling machine 5S

Vertical milling machine 5S Specifications   1.Table Size:1370*305*85mm;Travel:950*415*385mm
2.CE Certification
3.Taiwan milling head
4High quality,Most Favorable Prices

  Features: 1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle ±45°/±90°;
4.OEM MANUFACTURER; 5.For electric parts, mould and hole, slot and frame processing; 6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm; 7.Spindle tolerance 0.002mm; 8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.   Specification:Milling machine 5S

Model	5S
Table size	1370*305*85mm
Travel (Longitude)	950mm
Travel (Cross ward)	415mm
Travel (Vertical)	385mm
Travel of spindle quill	127mm
Max.Distance from the spindle nose to table	550mm
Spindle (Rotation speed)	80-5440RPM
Spindle (Taper)	NT40
Spindle (Rated power)	5HP
Tilt Angle (Forward and Backward)	±0°
Tilt Angle (Left and Right)	±90°
Dimension	1600*1850*2400mm
Net weight	1900kg

  Accessories: 1.Standard accessories: Oil pump Working light Draw bar Way cover Operation manual Tool and toolbox   2.Optional accessories:   NT40 Milling chuck Clamping kits 6" vise Coolant system DRO Power feed Elevating motor
