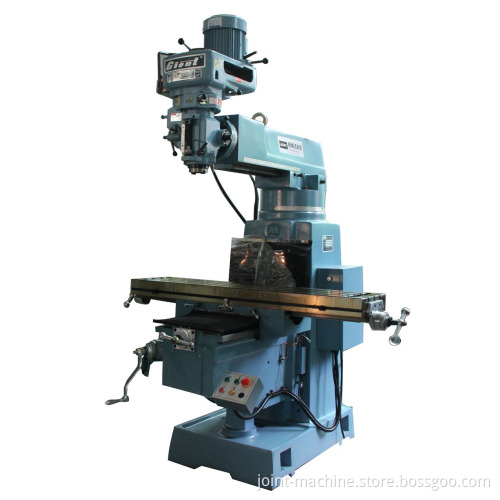

Small metal vertical turret milling machine 5S

Small metal vertical turret milling machine 5S Features: 1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle ±45°/±90°;
4.OEM MANUFACTURER; 5.For electric parts, mould and hole, slot and frame processing; 6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm; 7.Spindle tolerance 0.002mm; 8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.   Specification:Milling machine 5S

Model	5S
Table size	1370*305*85 mm
Travel (Longitude)	720 mm
Travel (Cross ward)	415 mm
Travel (Vertical)	385 mm
Travel of spindle quill	127 mm
Max.Distance from the spindle nose to table	550 mm
Spindle (Rotation speed)	80-5440/(16 grades) 60HZ
Spindle (Taper)	NT40
Spindle (Rated power)	5HP
Tilt Angle (Forward and Backward)	0°(±45° Optional)
Tilt Angle (Left and Right)	±90°
Dimension	1600*1850*2400 mm
Net weight	1900 kg

X Axies is Dovetail way, Y and Z Axies is Square way     1.Standard accessories: Oil pump Working light Draw bar Way cover Operation manual Tool and toolbox   2.Optional accessories: R8 collects Clamping kits 6" vise Coolant system DRO Power feed Elevating motor   After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.
