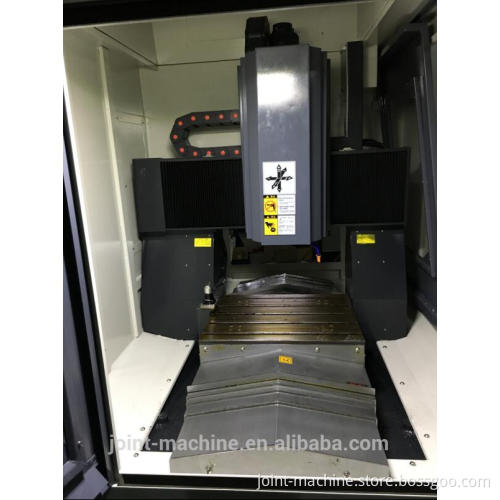

High Rotation Speed Processing CNC Engraving Machine 650B

  Product Description  High Rotation Speed Processing CNC Engraving Machine 650B

  Product Features    ·X/Y/Z Axes are linear guide way,3 axes standard rapid feed 10m/min.24m/min is optional.      · High precision,high rigidity machine body maintains the processing stability during high rotation speed.      · Special reinforced spindle-case design,the cutting strength increased 20% in comparison with similar models.      · Coulpling,spindle bearing,spindle,ball screw,and other key parts are imported from Germany,Japan and Taiwan top brand to ensure high quality and stability.

Model			Unit	CM650
Processing Range	X Axis Travel		mm	600
	Y axis Travel		mm	500
	Z axis Travel		mm	250
	Distance between spindle nose to worktable		mm	50-300
Table	Table size		mm	600*500
	Load weight		Kg	300
	T-Slot		Pcs-mm-mm	5*16-100
Spindle	Holder size			ER25/BT30
	Diameter of Install		mm	Φ125
	Spindle Rotary speed		r/min	500-24000rpm
	Rated output torque		N.M	4.5
	Spindle motor power		kw	4.0/5.5
Axis	X/Y/Z Axis motor rate output torque		N.M	5.39
	X/Y/Z axis motor power		kw	0.85
	Cutting feed speed		m/min	8
	Rapid speed of X/Y/Z axis		m/min	10/10/10
Accuracy	X/Y/Z axis Positioning accuracy		mm	0.006/0.006/0.005
	X/Y/Z axis Repeat positioning accuracy		mm	0.005/0.005/0.003
Other	Dimension		mm	1930*2040*2340
	Total  Power		KVA	8
	Weight		Kg	2800

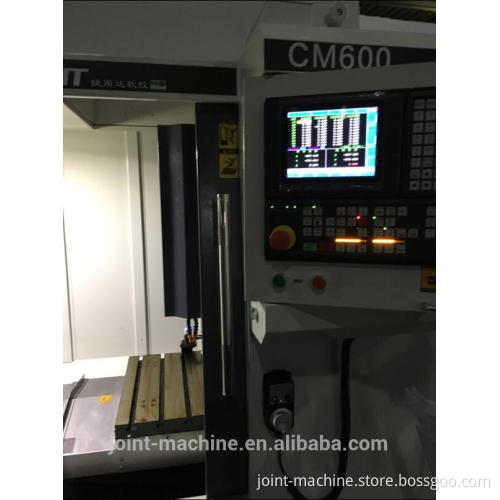

Accessories  Standard accessories                  Optional accessories Taiwan LNC control system                                · BT30 tool magazine Taiwan Three axes ball screw                             · Auto tool measurment Imported linear way                                                · Aoltage regulator Japan three axes servo motor                             · CNC Rotary table  Working light Coolant pump Spindle coolant Our Services   Packaging & Shipping     Company Information   SHENZHEN Joint Industry Co., Ltd specialized in R&D and manufacturing mold processing and machinery parts processing equipments.We developed high quality and high-tech research,development,manufacturing,service team and management system,and expanded products to more than 10 series from milling machines, to machine centers.  With the exceptional quality products and distinctire brand reputation,our products are sold to more than 40 developed cities all over China,and also to more than 20 countries all over the world across Asia,Europe and America. Our production workshop   Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.   FAQ
