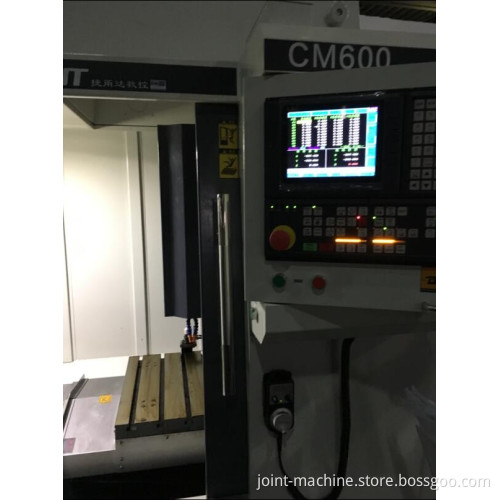

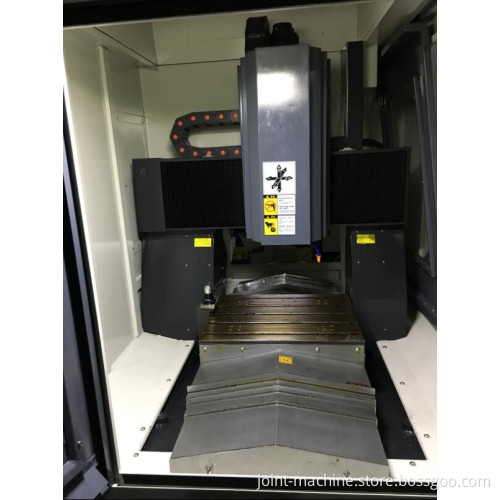

High speed and mini cnc metal engraving machine CM600

High speed and mini cnc metal engraving machine CM600

Get Latest Price

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

High speed and mini cnc metal engraving machine CM600 Specifications Best Cast, Dragon frame design
Independent coolant system for spindle, assure the long time of spindle
Fourth axis is optional

Specification Best Cast, Dragon frame design; Independent coolant system for spindle, assure the long time of spindle; Fourth axis is optional; Linear way, ball screw, servo and drive motor are imported from Taiwan and Japan

Model	CM600	CM650B	CM860
Table size	600*500MM	600*500MM	800*600MM
Table travel	600500220MM	600500250MM	680760330MM
Width of frame	650MM	760MM	760MM
Spindle taper	ER25	ER25/BT30	ER25/ER32/BT30
Spindle rotation	500-24000RPM	500-24000RPM	500-24000RPM
Rated power of spindle	4.5KW	5.5KW	5.5KW
Rated power of three axes servo motor	0.85KW	0.85KW	0.85KW
Distance between spindle and table	50-300MM	50-300MM	80-375MM
Feed rate of three axes	8M/MIN	8M/MIN	8M/MIN
Fast feed rate of three axes	10M/MIN	10/24M/MIN	12M/MIN
Dimension	193014502132MM	193020402340MM	251023372310MM
Net weight	2500KGS	2800KGS	3500KGS
Max loaded of table	200KGS	300KGS	400KGS

Photo: 1.Plant: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.

2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.

3.Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as "National Grade HI-Tech Enterprise". 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
