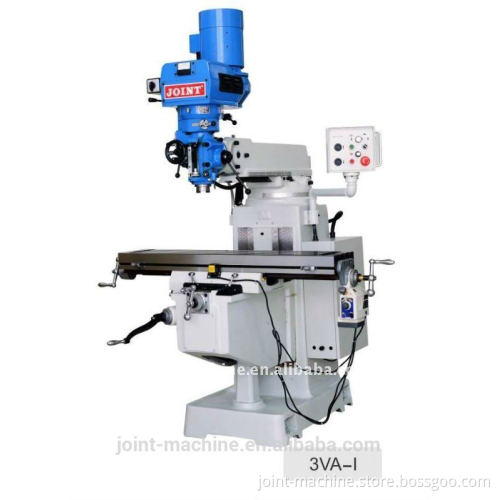

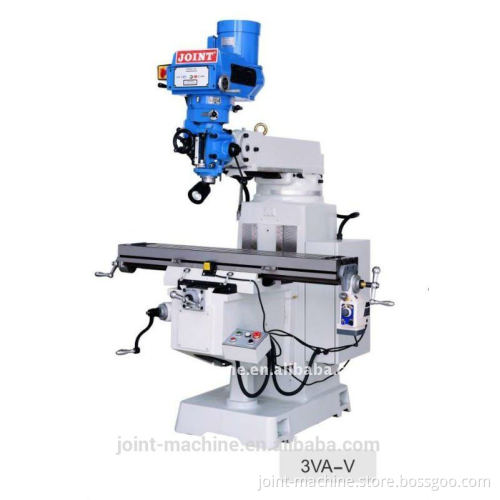

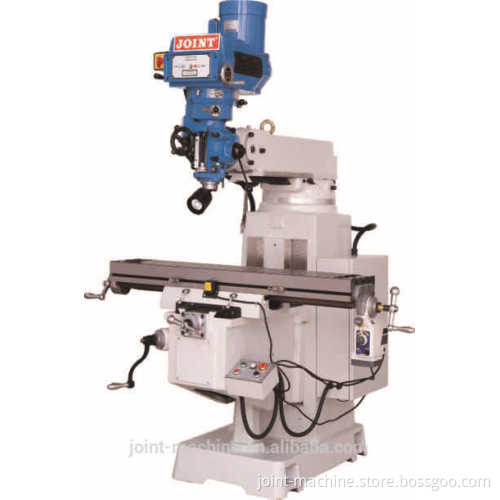

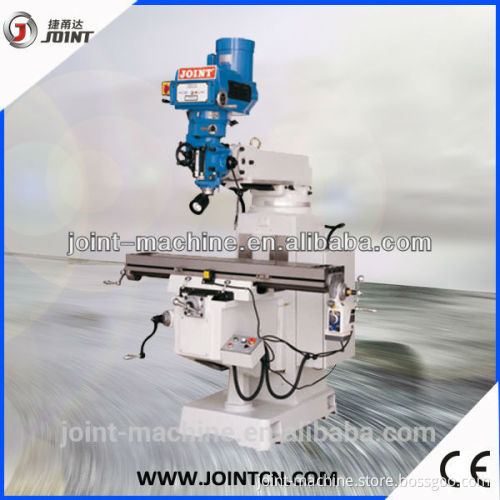

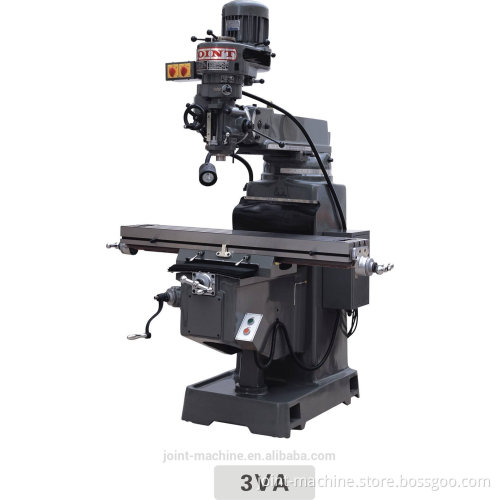

High precise and high quality samll vertical turret milling machine 3VA

High precise and high quality samll vertical turret milling machine 3VA Features: 1.For electric parts, mould and hole, slot and frame processing 2.Twice precisely scraping could assure the quality of processing 3.Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm 4.Taiwan original milling head, NSK P4 spindle bearing 5.Spindle tolerance 0.002mm 6.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm 7.Variable speed and Inverter speed is available   Specification:milling machine 3VA

Model	3VA
Table size	1270*254*90MM
Table travel	900*395*350MM
Travel of spindle quill	127MM
Max.Distance from the spindle nose to table	400MM
Spindle rotation speed	80-5440RPM(16 grades)
Spindle taper	R8 or NT30
Spindle rated power	3HP
Tilt angle(Forward and Backward)	±45º
Tilt angle(Left and Right)	±90º
Dimension	1500*1700*2150MM
Net weight	1280KGS

  Accessories: 1.Standard accessories: Oil pump Working light Draw bar Way cover Operation manual Tool and toolbox   2.Optional accessories: R8 collects or NT30 milling chuck Clamping kits 6" vise Coolant system DRO Power feed Elevating motor   After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.   Photos: 1.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.     2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.     3.Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”. 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.      4.Accessories for milling machine
