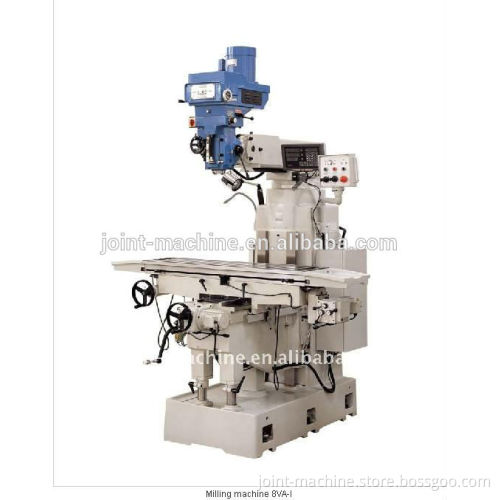

JOINT brand China Low price Manual Vertical Milling Machine 8VA

JOINT brand China Low price Manual Vertical Milling Machine 8VA Features: High Class meehanite casting ,double strengthened rigbs spindle tolerance :0.002mm suitable for electronic parts, mould and hole,slot and frame processing twice precision scraping can ensure processing quality  taiwan original milling head ,NSK P4 Spindle bearing      Specification:Vertical Milling Machine 8VA

Model	8VA
Table  size	1524*360*99mm
Table travel	1150*500*500mm
Travel of spindle quil	140mm
Max.Distance from the spindle nose to table	690mm
Spindle (Rotation speed)	80-5440(16speed)/60HZ 66-4530/(16speed)/50HZ
Spindle (Taper)	NT40
Spindle (Rated power)	5HP/7.5HP
Tilt Angle (Forward and Backward)	±45°
Tilt Angle (Left and Right)	±90°
Dimension	2300*2000*2900
Net weight	2900kgs

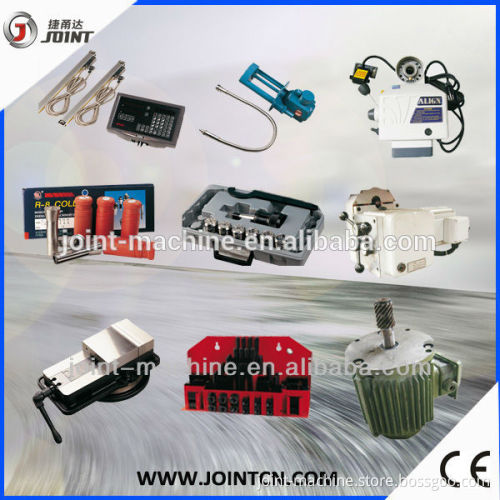

   Stand Accessories: step speed milling head  way cover  draw bar manual oil pump  working light  tool and toolbox  Manual operation    Optional Accessories  Milling chuck  Clamping kit Coolant system  X/Y axis power feed Elevator motor Two axis DRO  Three axis DRO Mechanic power feed Vise Variable speed milling head Inverter speed millig head  NT30/NT40 Power bar
