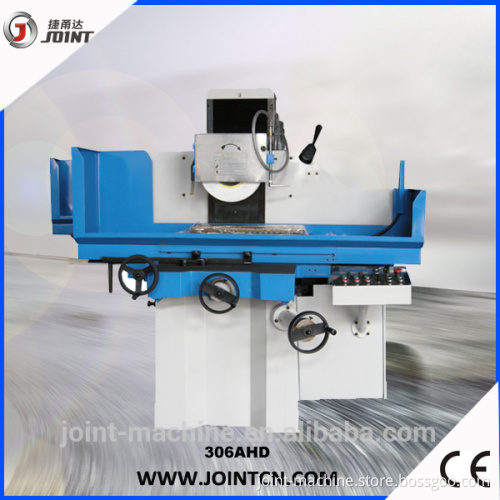

Auto Vertical Feed High-precision Hydraulic Grinding Machine 306AHD

Product Description   Auto Vertical Feed High-precision Hydraulic Grinding Machine 306AHD   Features Twice scraped slide way,which could assure the accuracy of the machine High quality electric components Radius tolerance of spindle<=0.002mm Vertical vertical value of ram slide way <=0.005mm Processing accuracy<=0.005

Model			306AHD
Table size		mm	600*300
Table   travel	Longitude(X)	mm	640
	Crossward(Y)	mm	320
Table side way		mm	Slide way
Max. distance from spindle center to working table		mm	580
Crossward feed of hand wheel		1 Rev	5
		1 Div	0.02
Vertical feed of hand wheel		1 Rev	2
		1 Div	0.01
Rotation Speed		rpm	1450
Grinding Wheel Size		mm	Φ355*(20-45)*φ127
Spindle motor		Hp	5*4
Hydraulic motor		Hp	2*4
Crossward driving motor		Hp	0.08*4
Vertical driven motor		Hp	0.5*4
Coolant pump motor		Hp	0.1*2
Dimension (L*W*H)		mm	2040*1830*2090
Net Weight		Kg	2100

     ♦AHD: Longitudinal and Cross ward Automatically, Z axis with auto feed.     Accessories  Standard Accessories Coolant system or Dust Clean Magnet Chuck (Below 250H)/Electrice Magnet Chuck (Above 250H) Working Light Tool and Toolbox Our Services   Company Information SHENZHEN Joint Industry Co., Ltd specialized in R&D and manufacturing mold processing and machinery parts processing equipments.We developed high quality and high-tech research, development,manufacturing,service team and management system,and expanded products to more than 10 series from milling machines, to machine centers.  With the exceptional quality products and distinctire brand reputation,our products are sold to more than 40 developed cities all over China,and also to more than 20 countries all over the world across Asia,Europe and America.  Our production workshop   Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.   Certifications   Packaging & Shipping     FAQ
